Tube Mill Machine Line
MG-45 Tube Mill Pipe Making Machine MS Pipe Manufacturing Machine
Machine Parameter
| Item No. | MG-45 |
| Outer Diameter | 13mm-60mm |
| Wall Thickness | 0.6mm-2.5mm |
| Production Speed | 30-100m/min |
| Driving Motor | 132KW*1 set |
| HF Welder Power | 150KW |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Warranty of core components | 1 Year |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
Application: GI,Construction,Automotive,General Mechanical tubing,Furniture, Agriculture,Chemistry,Oil,Gas, Conduit,Contructure.
Production Equipment
CNC Lathe CK6180, Lathe CDE6140A, Milling Machine X2012-2, CNC Drilling Machine JH-CK6150, Plasma Cutting Machine LGK-200IGBT, Radial Drilling Machine Z3050*16-1.
Production Line

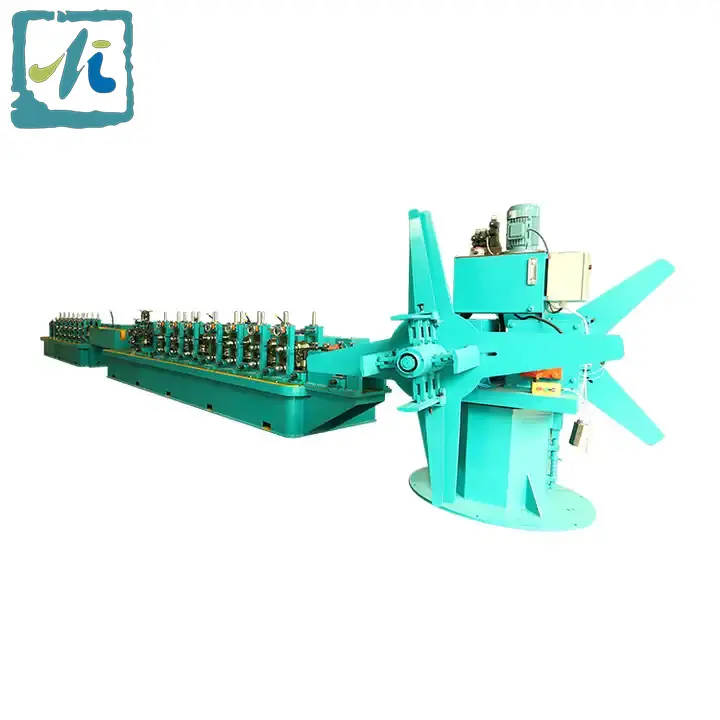

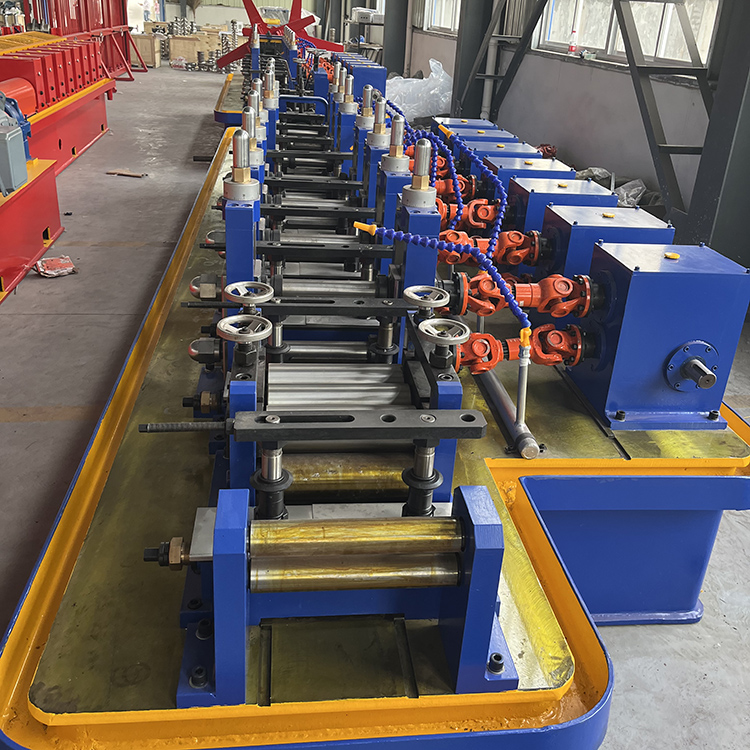

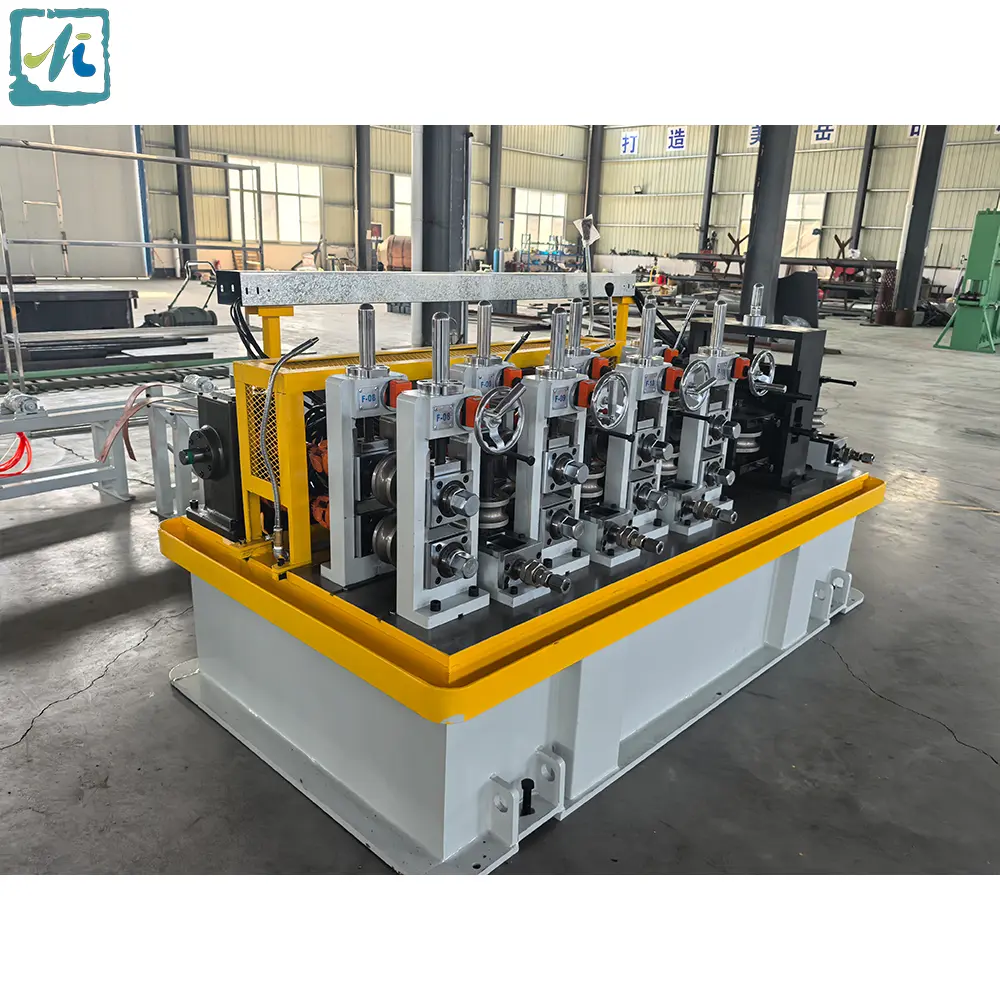

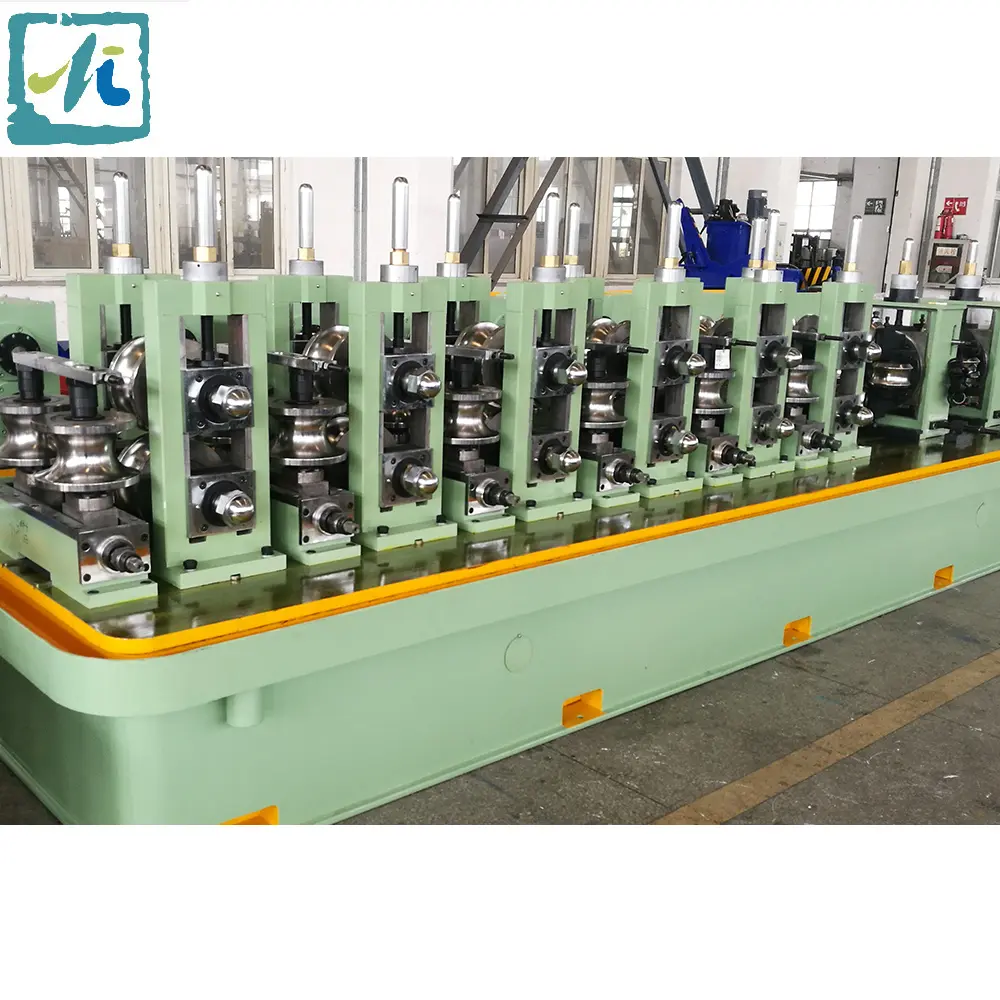

Tube Mill Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
Our Advantages
1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.
2. We have strong design & technical ability, we can design and manufacture as customer's requirement.
3. Our factory has been approved ISO 9001 certificate.
4. We have much experience for installation and training experience overseas.
5. We have successfully exported our machines to more than 90 countries, We all get good feedback.
6. We provide a free one years warranty for all our items.
7. OEM brand.
Our Factory
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
Our Certificates
Our Exhibition
FAQ：
Q. Who are We?
Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.
Q. How do we guarantee quality?
In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.
Q. What can you buy from us?
Various types of pipe making machines.
Q. Why do you buy from us instead of other suppliers?
Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.
Q. What services can we provide?
Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
Business Management & Excellent Team
PDCA management mode: Planning (goal, plan, budget); Design; 4C (Check; Communicate; Clean; Control); 2A (Act; Aim)
Excellent team with professional engineer and intimate business personnel.
Standardized Production ProcessComplete production equipment, Professional testing equipment, Scientific packaging and Necessary installation instructions.Quality Assurance
A. 6 S management: SEIRI, SEITON, SEISO, SEIKETSU, SHITSUKE, SECURITY.
B. All of Our products have the certifications and certificates they deserve ，For more certificates, please contact us. (Tel./WhatsApp/Wechat/Imo.: +86-18652798567)
C.● One year’s warranty.
● Providing spare parts for life time at cost price.
● Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
● Provide technical service for facility reforming, refurbishment.
