Sizing Machine-Pipe Welding Machine Accessories

Tube Mill Accessories

Sizing Machine-Pipe Welding Machine Accessories

The Sizing Machine part is used to shape and finish the pipe billet after cooling, so that the pipe meets the customer's requirements.

  • Warranty 1 year
  • Color Custom

Product Details

Sizing Machine, which is an important part of pipe making Machine, is designed to improve the efficiency and precision of pipe making machine. This advanced machinery plays a key role in the forming and finishing of the tube billet after the cooling stage. By ensuring that the final product meets strict customer specifications, Sizing Machine is an integral part of producing high quality pipes for a variety of industrial applications.
The Sizing Machine operates with great precision and allows for precise sizing of pipes. This ability is crucial in the pipe manufacturing industry, where adherence to specific measurements is critical. Using state-of-the-art technology, Sizing Machine not only optimizes the shaping process, but also significantly reduces material waste, thereby improving overall production efficiency. Its rugged design ensures durability and reliability, making it a valuable asset for any tube mill operation.
Incorporating a Sizing Machine into your pipe making machine setup will undoubtedly improve your production standards. The equipment's ability to deliver consistent results and meet different customer requirements has become a cornerstone of modern tube manufacturing. Invest in a sizing machine today to ensure that your operation remains competitive and is able to produce high-quality pipes that meet market demands.
Description   Technical parameters
Horizontal roll stands 1 Quantity Example 5 stands
2Material of horizontal stands Example High-precision cast or forged steel
3Diameter of horizontal shaft Example Φ130mm
4Material of horizontal shaft Example 42CrMo
Vertical roll stand 1Quantity Example 5 stands
2Material of vertical stands Example QT50
3Diameter of vertical shaft Example Φ80mm
(4Material of vertical shaft Example 45# forged steel
Driven gearbox 1Quantity Example 5 gearboxes
2Material of gearbox Example QT50
3Type Example Spiral bevel gear
4Material of gearbox Example 20CrMnTi
5Material of shaft Example 40Cr
Power transmission method From universal transmission joint to horizontal roll stands

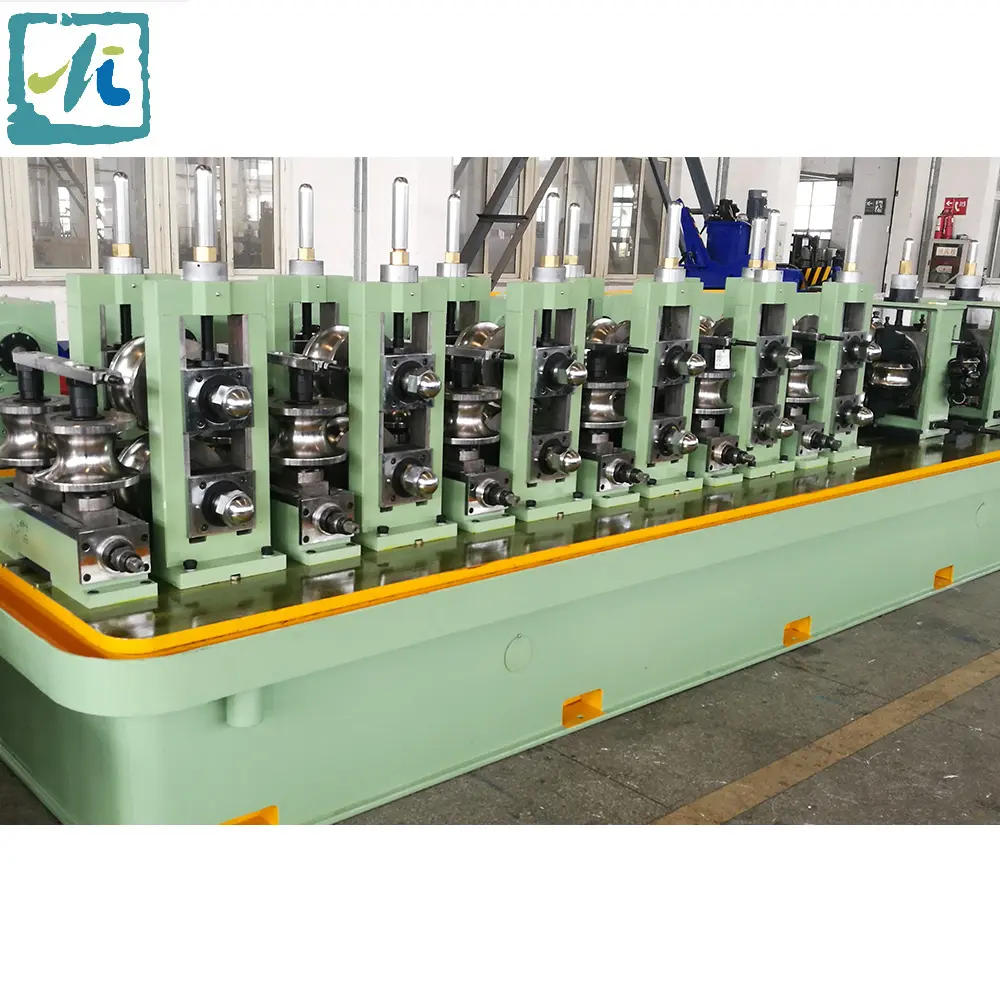

Sizing Machine

description2

Machine Production Shows

machine production shows

description2

Welded Pipe Making Machine

Model Outer diameter Pipe thickness Square tube size Square tube thickness Produce speed
MG-16 7mm-25mm 0.3mm-1.0mm 10mm*10mm-20mm*20mm 0.3mm-0.8mm 30m-100m/min
MG-25 8mm-32mm 0.4mm-1.2mm 10mm*10mm-25mm*25mm 0.4mm-1.0mm 30m-100m/min
MG-28 10mm-50.8mm 0.5mm-1.8mm 10mm*10mm-45mm*45mm 0.6mm-1.5mm 30m-100m/min
MG-32 13mm-50.8mm 0.6mm-2.0mm 10mm*10mm-40mm*40mm 0.6mm-1.5mm 30m-100m/min
MG-45 13mm~60mm 0.6mm-2.5mm 10mm*10mm~45mm*45mm 0.6mm~2.0mm 30m-100m/min
MG-50 19mm-76mm 0.7mm-2.75mm 15mm*15mm-60mm*60mm 0.6mm-2.0mm 30m-100m/min
MG-60 25mm-80mm 1.0mm-3.25mm 20mm*20mm-50mm*50mm 0.8mm-3.0mm 30m-80m/min
MG-76 30mm-90mm 1.0mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 15m-70m/min
MG-127 32mm-127mm 1.5mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 20m-70m/min
MG-140 32mm-140mm 0.8mm~4.0mm 25mm*25mm-110mm*110mm 0.8mm-3.5mm 30m-70m/min
MG-165 50mm-165mm 2.0mm-5.0mm 25mm*25mm-100mm*100mm 1.0mm-4.0mm 30m-50m/min
MG-172 89mm-172mm 1.0mm~5.0mm 70mm*70mm~130mm*130mm 1.0mm-4.0mm 30m-70m/min
MG-219 76.2mm-219.1mm 2.0mm~8.0mm 60mm*60mm~170mm*170mm 2.0mm-8.0mm 30m-45m/min
MG-254 89mm-254mm 2.0mm~7.0mm 70mm*70mm~200mm*200mm 2.0mm-6.0mm 30m-60m/min
For more customizations, please contact

description2

Company Introduction

At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
