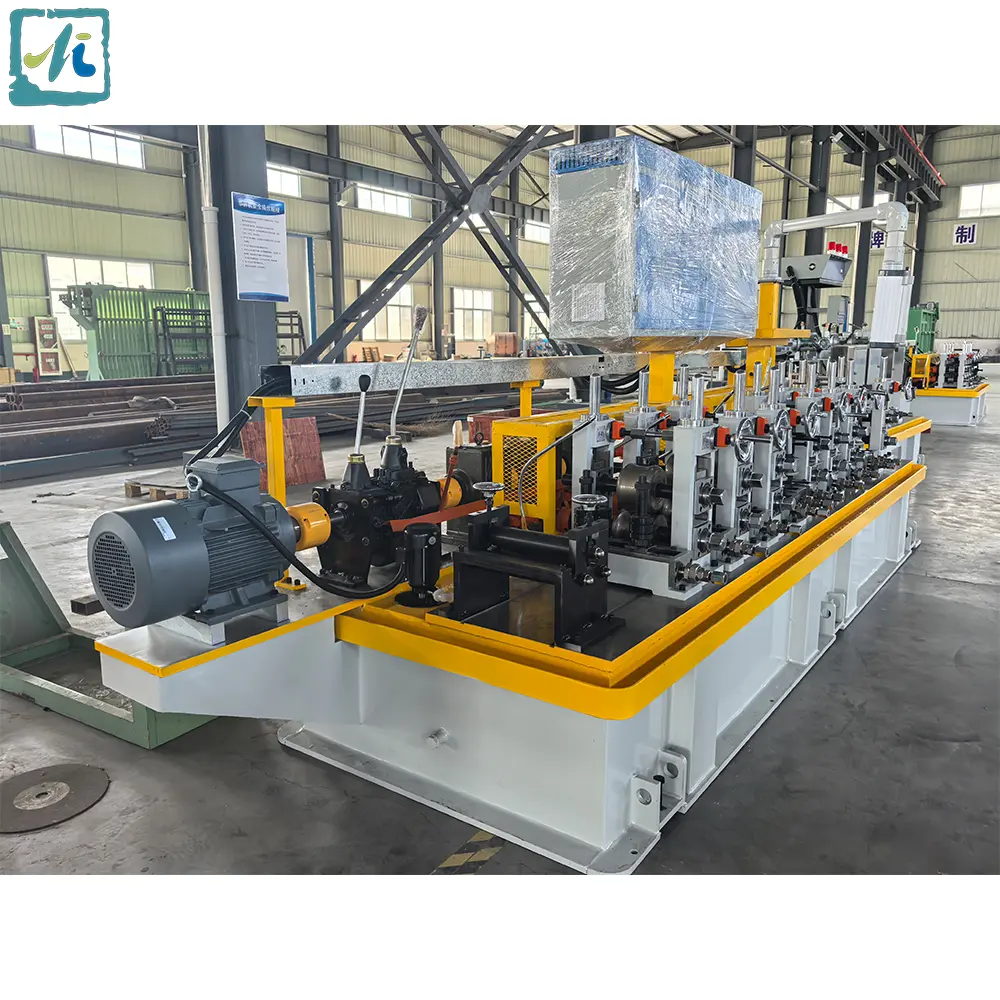

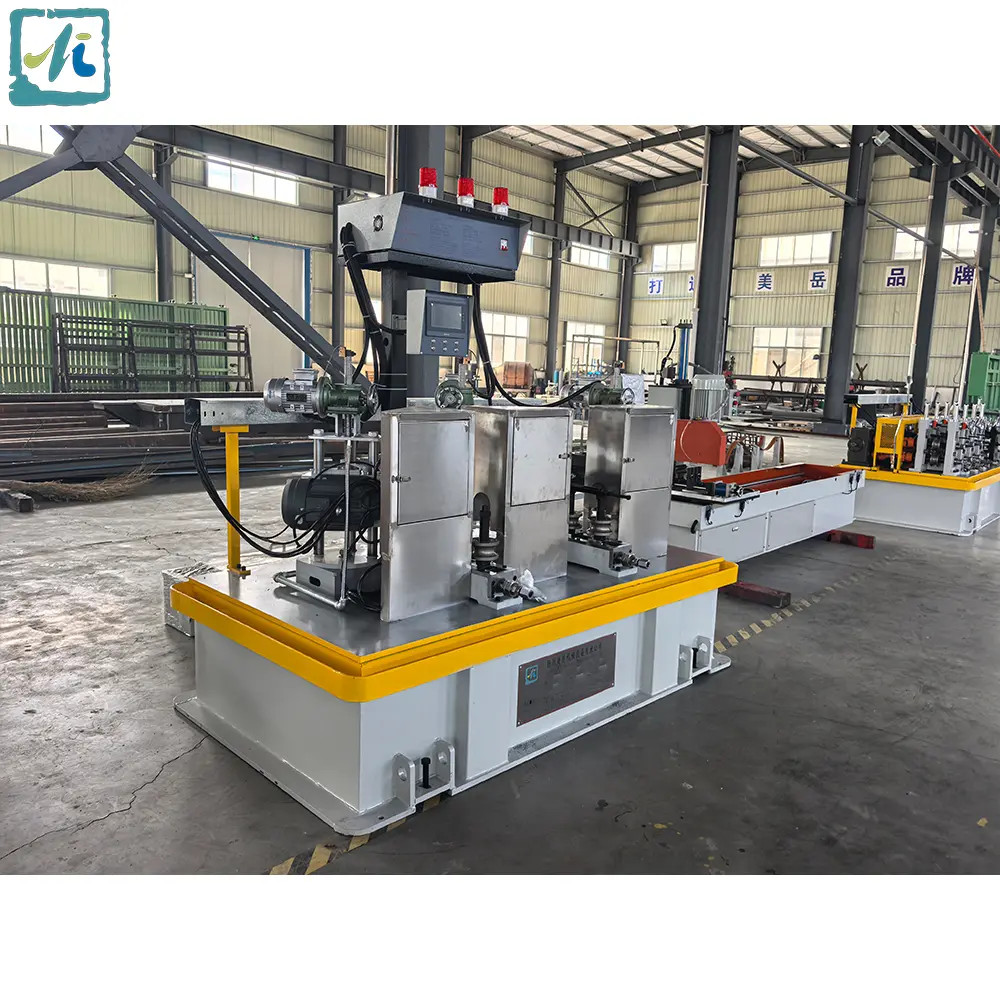

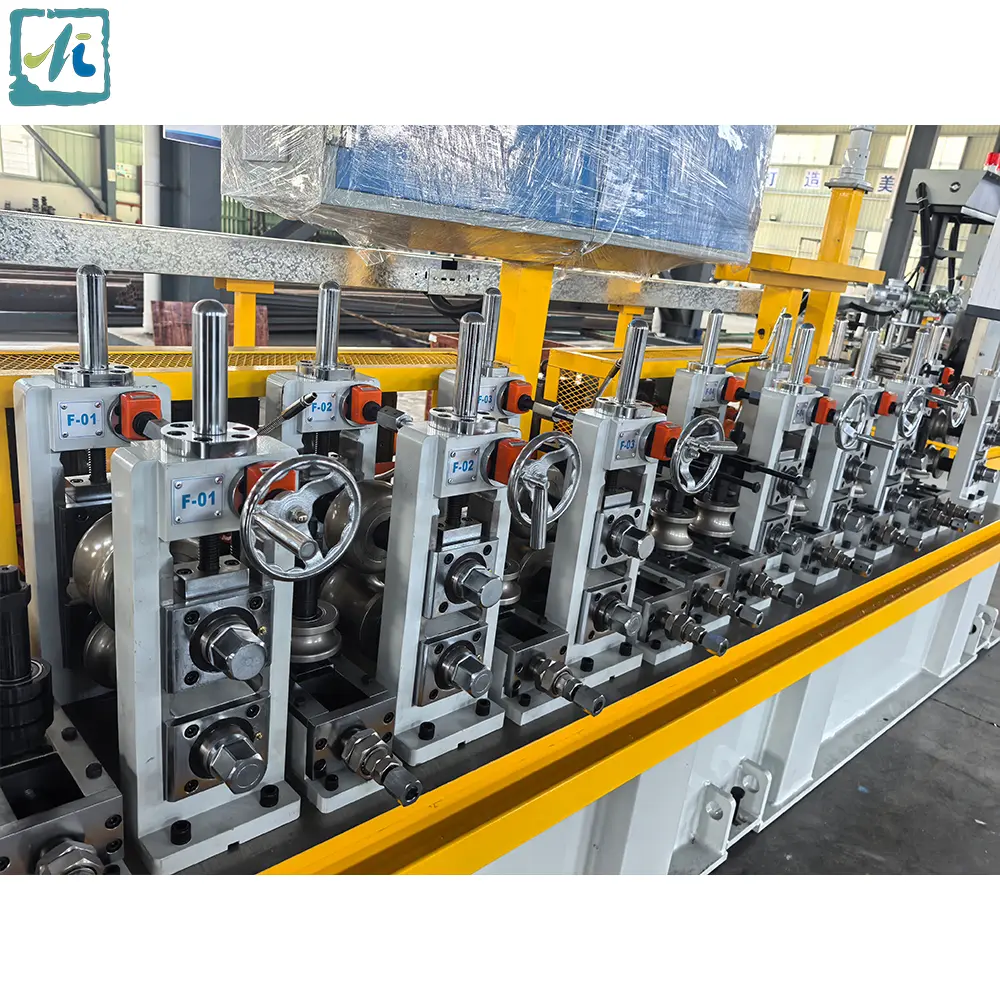

MV-S50L Automation Stainless Steel Pipe Making Machine
description2
Product Details
MV-S50L is a automatic stainless steel pipe manufacturing machine. It is a cutting-edge solution .SS pipe making machine can changed stainless steel pipe prduction. Our stainless steel pipe making machine use advanced automation technology. It is ensuring unmatched precision and consistency throughout the manufacturing process.
Our pipe making machine is rugged construction and easy control. MV-S50L can increase production and maintain the highest quality standards.
Our pipe making machine can pruduce stainless steel tubes ,its diameter 20-76mm,its thickness 0.3-2.5mm. Our MV-S50L stainless steel pipe making machine can meet various industrial needs. Our stainless steel tube mill machine impressive operating speed is 2-8m/min,its can ensure high volume and high quality production. Our pipe making machine have many features,its can optimize operations and increase production,so many manufacturers will choose our machine.
MV-S50L automatic stainless steel pipe making machine support customization,its designed simple,help user in mind. Our pipe making machine intuitive control system simple. Its can minimising downtiome and quick adjustments. Our machine have simple manufacturing process,ensure every pipe produced meets strict quality standards.
You can choose our MV-S50L stainless steel pipe making machine,you can increase production capacity,reduce operating costs. Choose us,maintain a competitive edge in stainless steel pipe market.
description2
Machine Parameter
| Finished tube dimension | 20~76mm |
| Tube wall thichness | 0.3-2.5mm |
| Milling speed | 2-8M/min |
| Main motor | 40KW |
| HF-welder | 11KW*2 |
| Product Keywords | Stainless Steel Pipe Making Machine |
| MOQ | 1 Set |
| OEM/ODM | YES |
| CUSTOM | YES |
| Warranty | 1YEAR |
| Pipe material | Stainless Steel |
| service | 1. Pre-sale service: workshop and production design 2. In-sale service: installation, training, on-site service by skilled engineers 3. After-sales service: video technical support, online support, spare parts, on-site maintenance and repair services |
description2
Production Line
description2
Tube Mill Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
description2
Company Introduction
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
description2
Our Certificates
description2
Our Exhibition
description2
FAQ
Q. Who are We?
A:Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.
Q. How do we guarantee quality?
A:In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.
Q. What can you buy from us?
A:Various types of pipe making machines.
Q. Why do you buy from us instead of other suppliers?
A:Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.
Q. What services can we provide?
A:Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
