Tube Mill Machine Line

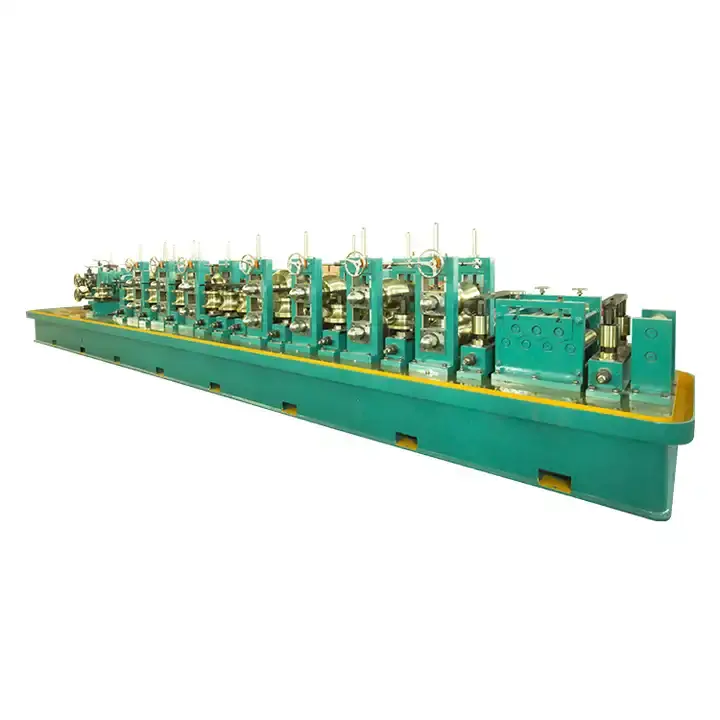

MG-76 Tube Mill Production Line Round Pipe Making Machine
description2
Product Details
Due to the characteristics of high hardness and smooth surface, the longitudinally welded pipe has been widely used in some industrial fields that were previously seamless steel pipes, such as automobile transmission pipes, boiler pressure pipes, petroleum casing pipes, oil and gas transmission pipes, etc. , Is gradually being replaced by longitudinal welded pipes.
Carbon Steel Tube Mill Pipe Machine mainly puts the capillary tube on the long mandrel, and rolls it into a steel tube through a continuous rolling mill with multiple stands arranged in sequence and the roll gaps of adjacent stands are mutually offset by 90°. Our product is selected with high-quality accessories and advanced technology, so it has good performance and high-quality quality that cannot be compared with similar products. It is an excellent choice for customers.
Carbon Steel Tube Mill Pipe Machine can effectively improve production efficiency. The features of high degree of mechanization and automation reduce the number of operators and save labor costs. The tubes it produces are of good quality, excellent in size and precision, and are worthy of the trust and choice of customers.
description2
Machine Parameter
|
Item No.
|
MG-76
|
|
Outer Diameter
|
30mm-90mm
|
|
Wall Thickness
|
1.0mm-4.0mm
|
|
Square tube size
|
25×25mm～100×100mm
|
|
Square tube thickness
|
1.0mm～4.0mm
|
|
Production Speed
|
15-70m/min
|
|
Pipe length
|
4M～8M
|
|
Driving Motor
|
320KW*1 set
|
|
HF Welder Power
|
300KW
|
|
Weight
|
≤10000kg
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Warranty of core components
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
description2

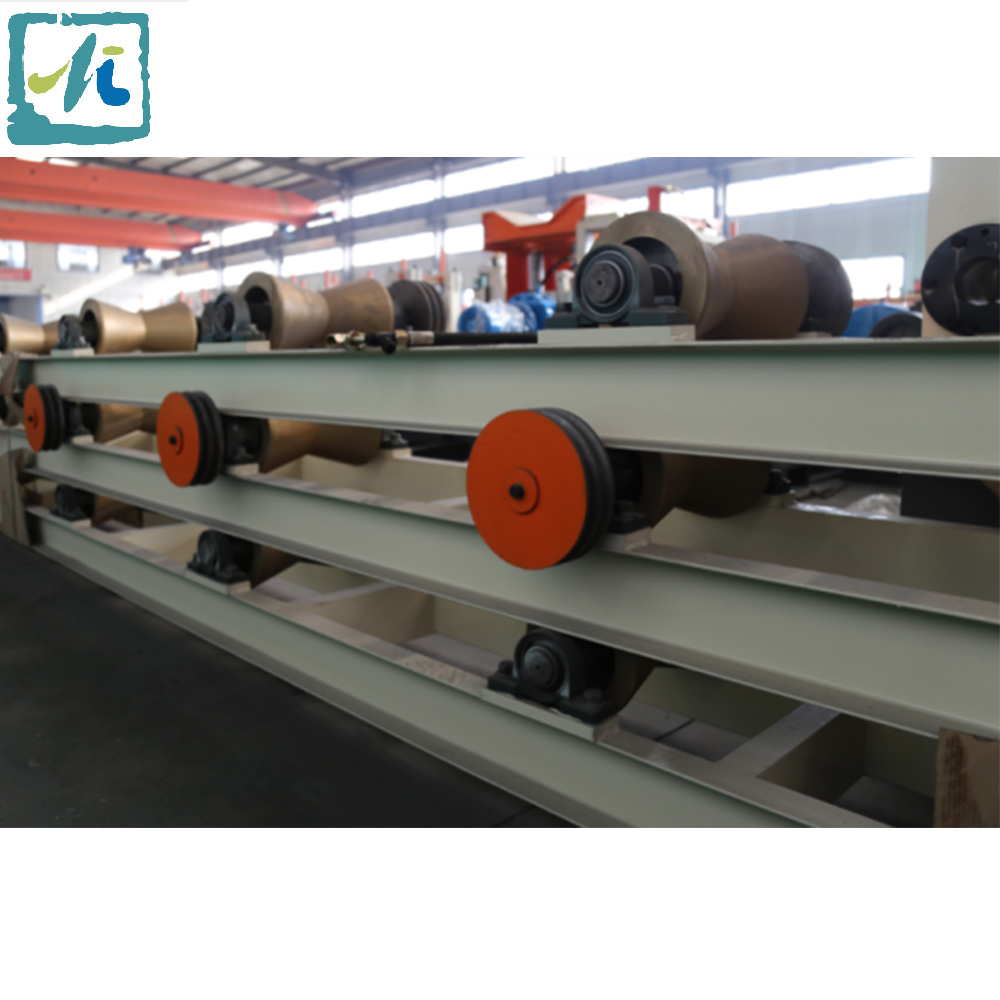

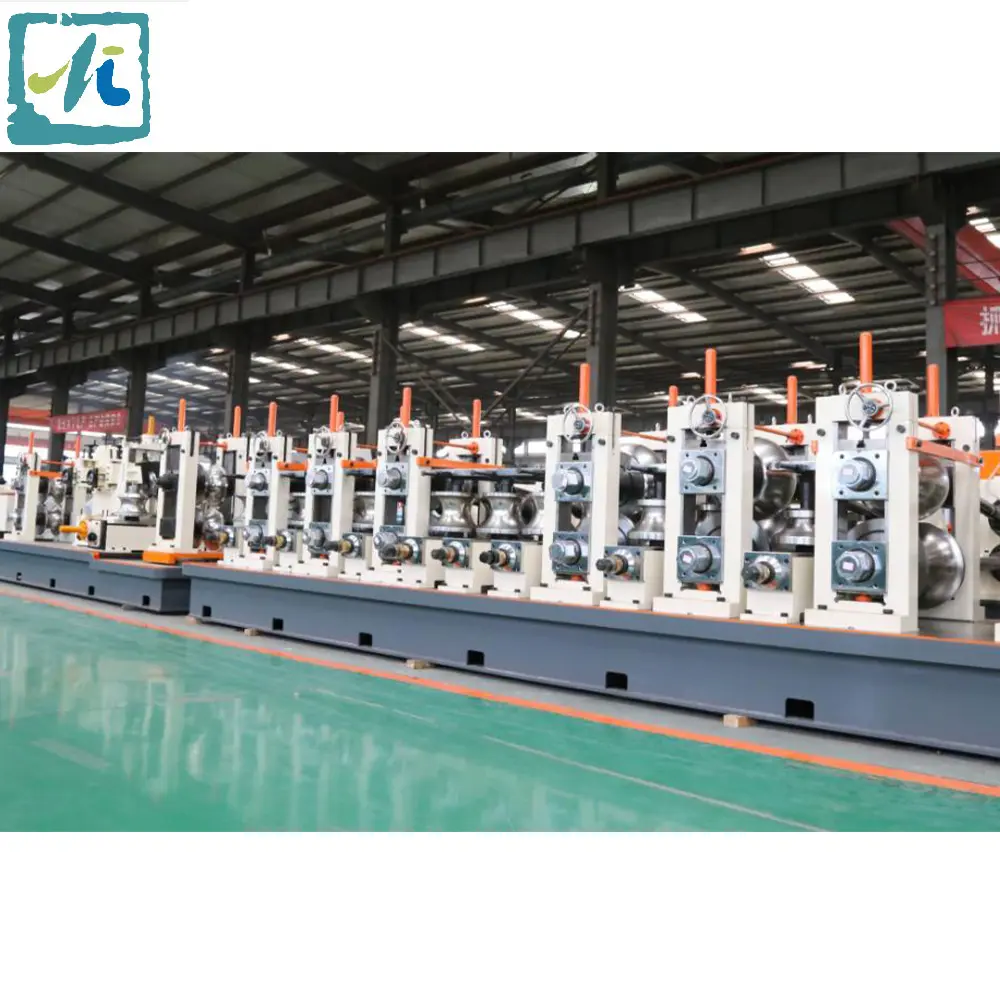

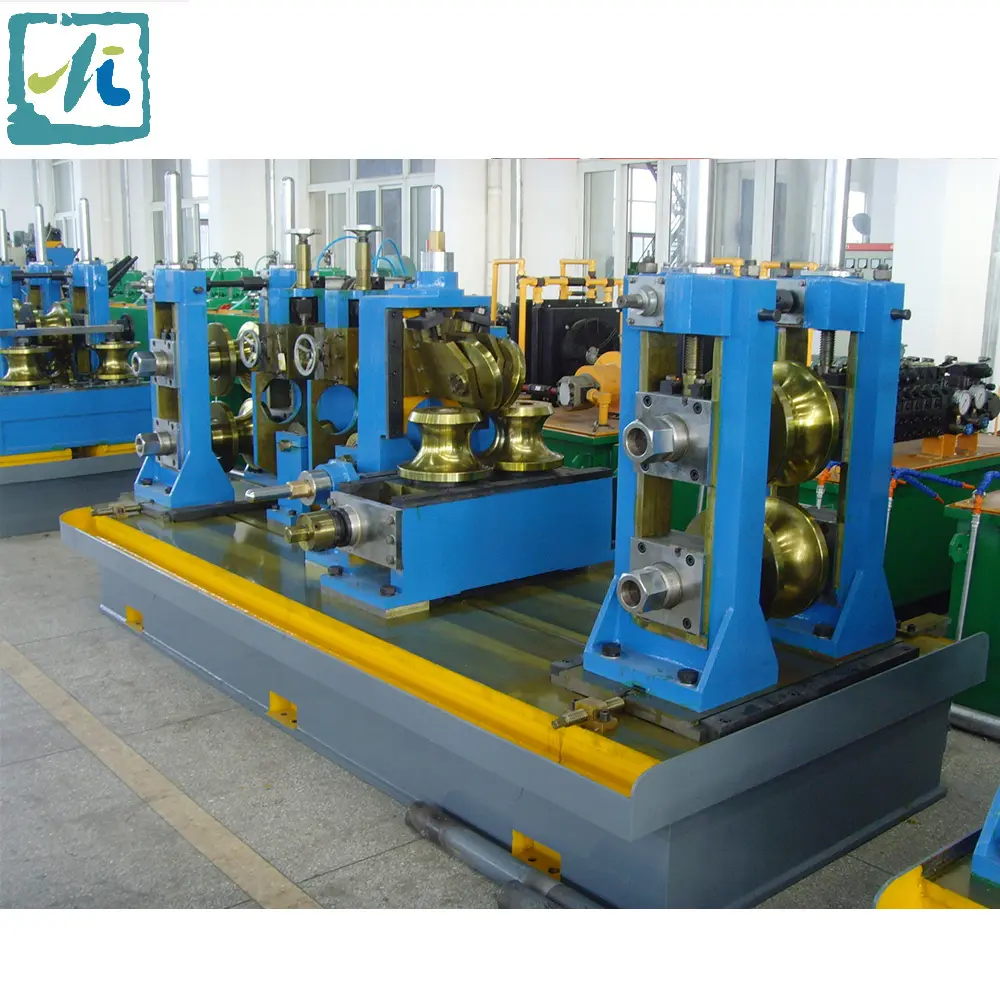

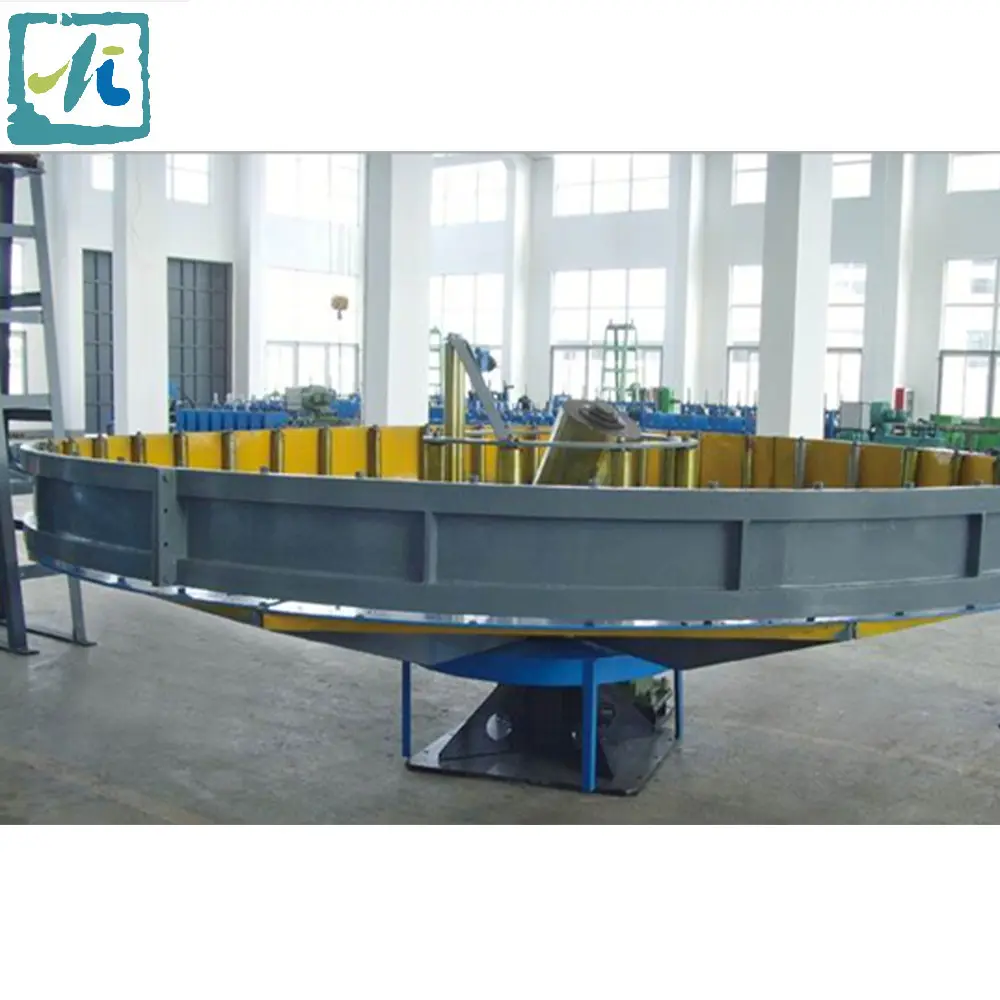

Production Line
description2
Tube Mill Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
description2
Company Introduction
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
description2
Our Certificates
description2
Our Exhibition
description2
FAQ
Q. Who are We?
A:Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.
Q. How do we guarantee quality?
A:In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.
Q. What can you buy from us?
A:Various types of pipe making machines.
Q. Why do you buy from us instead of other suppliers?
A:Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.
Q. What services can we provide?
A:Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
