Tube Mill Machine Line

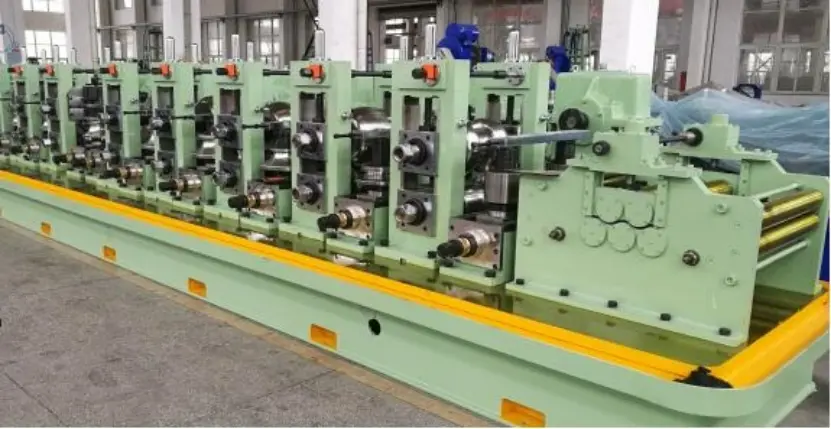

MG-60 Steel Tube Mill Machine Mild Steel Pipe Making Machine
description2
Product Details
Compared with the traditional crushing process, our products have the characteristics of large crushing ratio, large production capacity and strong adaptability to materials, which greatly improves the production efficiency. Our equipment is convenient for the large-scale chemical industry needs, can perfectly meet the large-scale production needs of today's modern enterprise factories, and more energy saving. We are committed to the quality of every product and want to be the best tube mill manufacturer in the industry.
Provides the design, manufacture and installation of pipe mill machinery such as drive systems. Provides complete solutions including control drawings, panel construction, programming, testing and start-up. Components include 200 HP vector motor and controller, PLC, Ethernet IP module, IEC motor control assembly, safety relay, 15 ". HMI, safety relays and flexible input/output. Industries served include paper conversion, plastic processing and corrugated containers, packaging, metals, building materials and consumer goods.
description2
Machine Parameter
|
Item No.
|
MG-60
|
|
Outer Diameter
|
25mm-80mm
|
|
Wall Thickness
|
0.8mm-3.5mm
|
|
Square tube size
|
20×20mm～50×50mm
|
|
Square tube thickness
|
0.8mm～3.0mm
|
|
Production Speed
|
30-80m/min
|
|
Pipe length
|
4M～8M
|
|
Driving Motor
|
132KW*2 set
|
|
HF Welder Power
|
250KW
|
|
Weight
|
≤10000kg
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Warranty of core components
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
description2

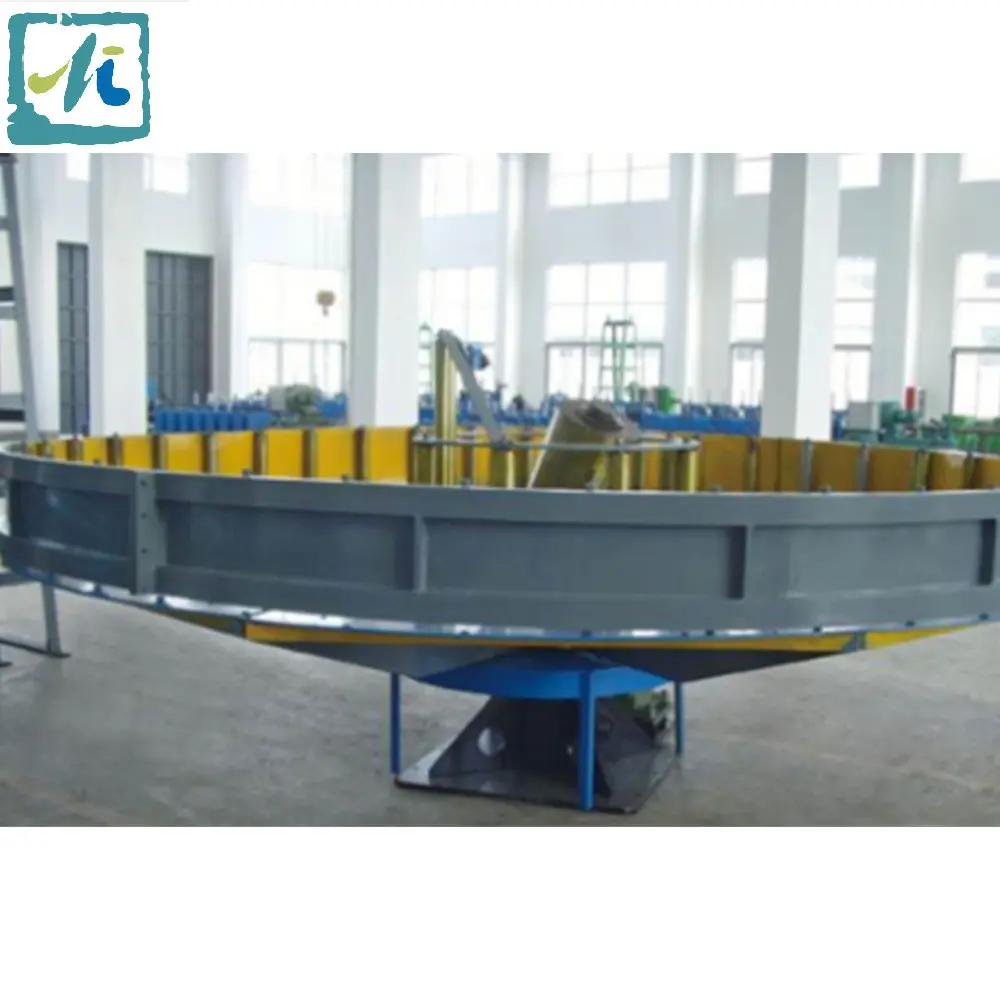

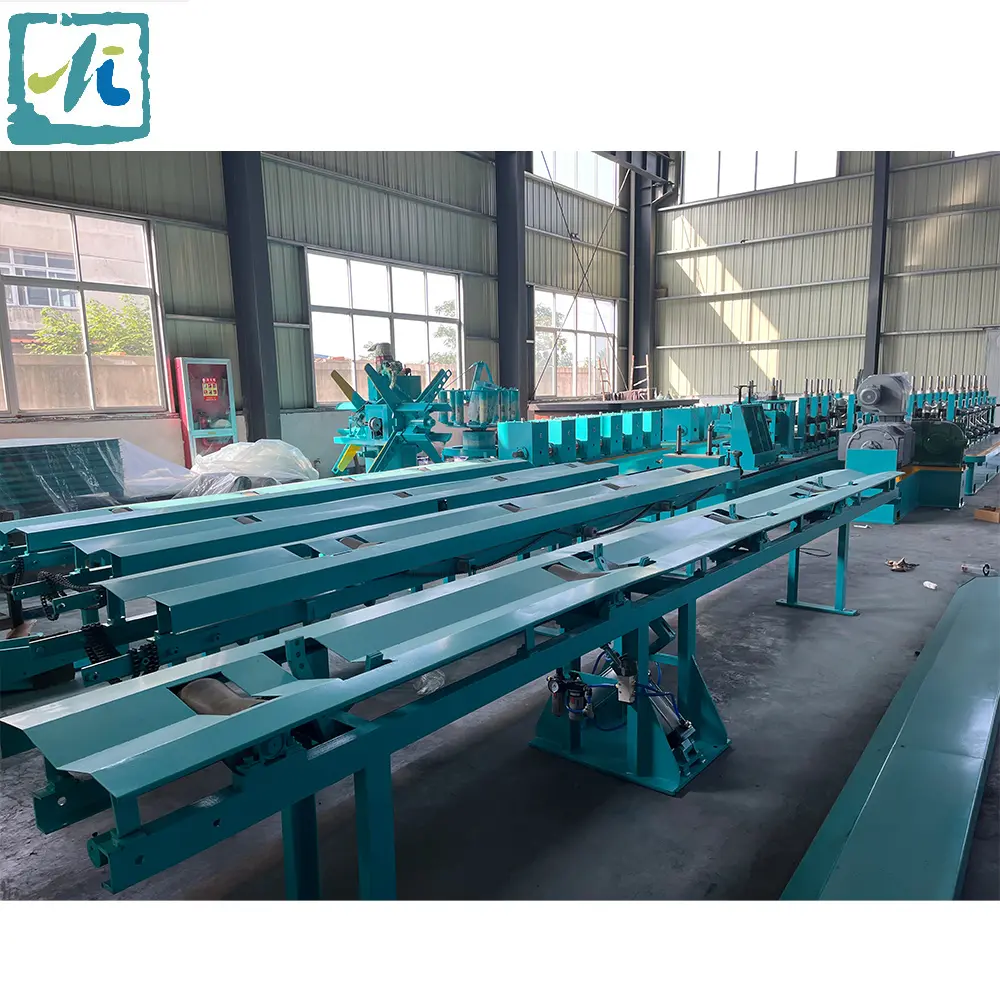

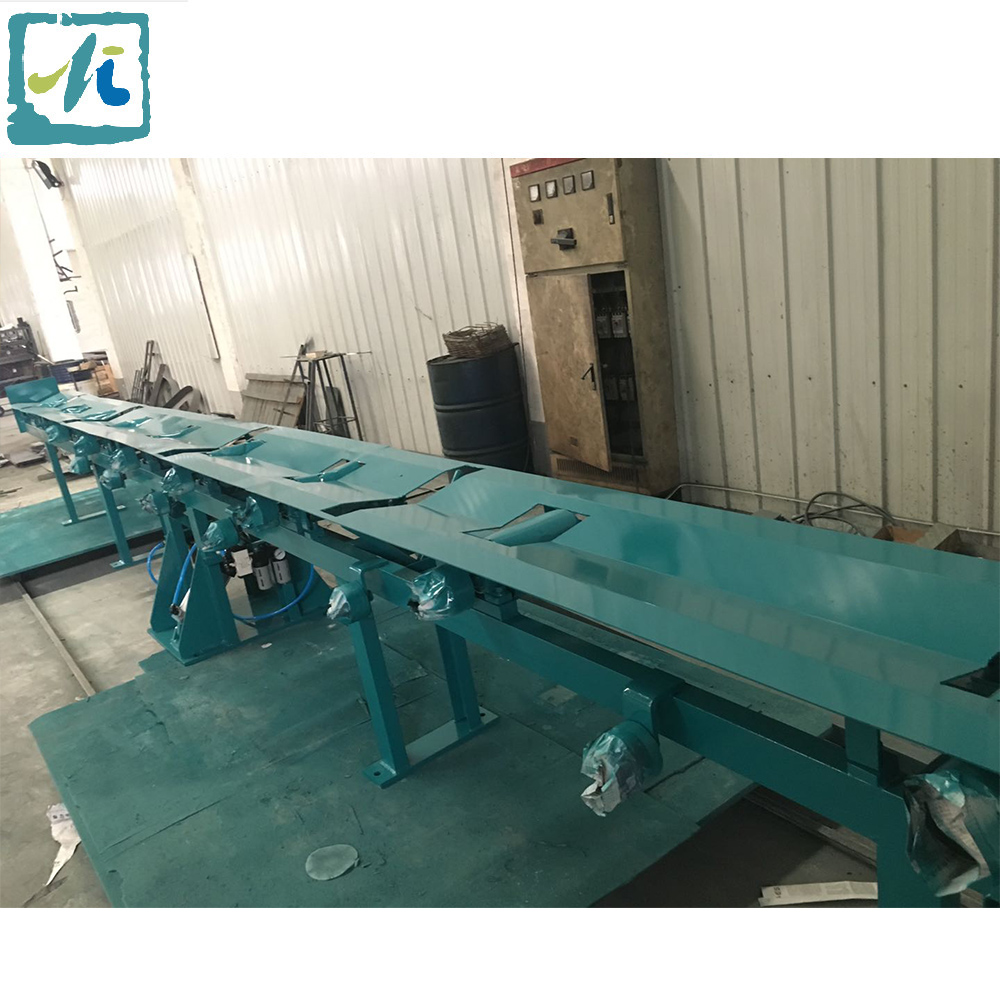

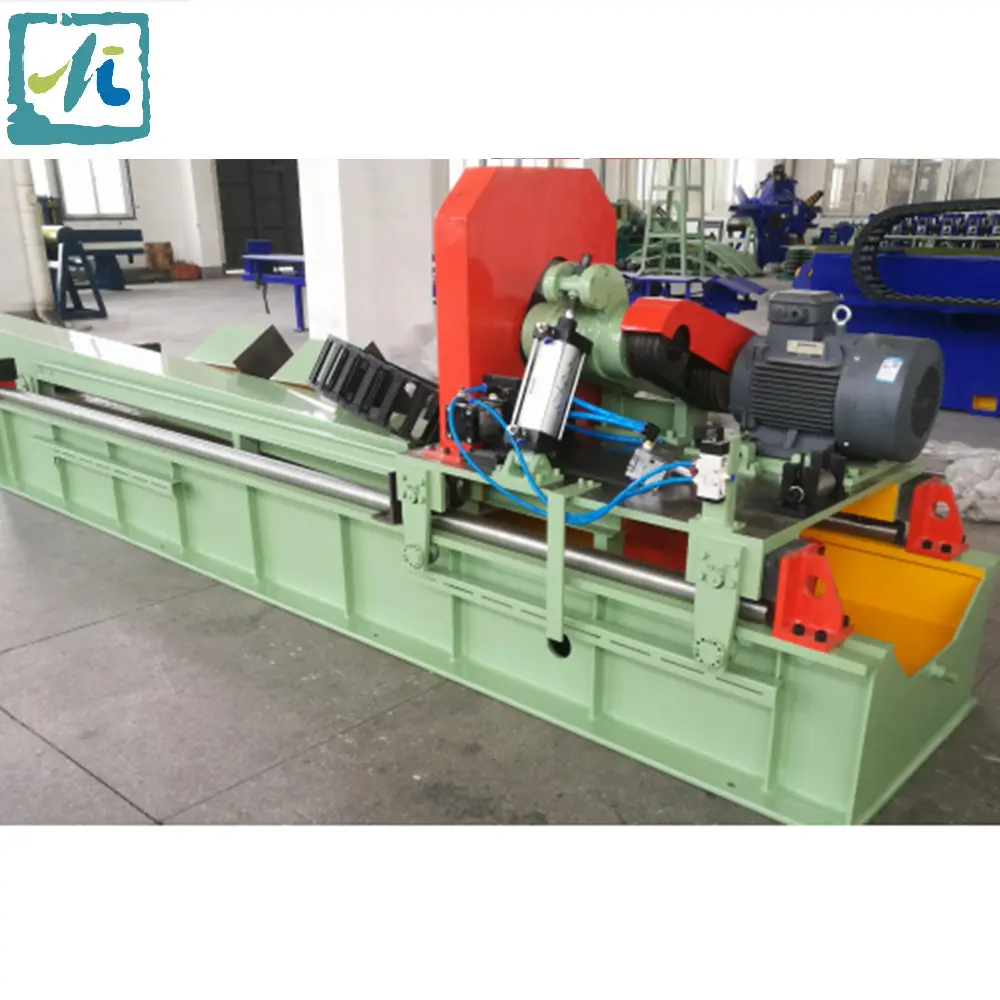

Production Line
description2

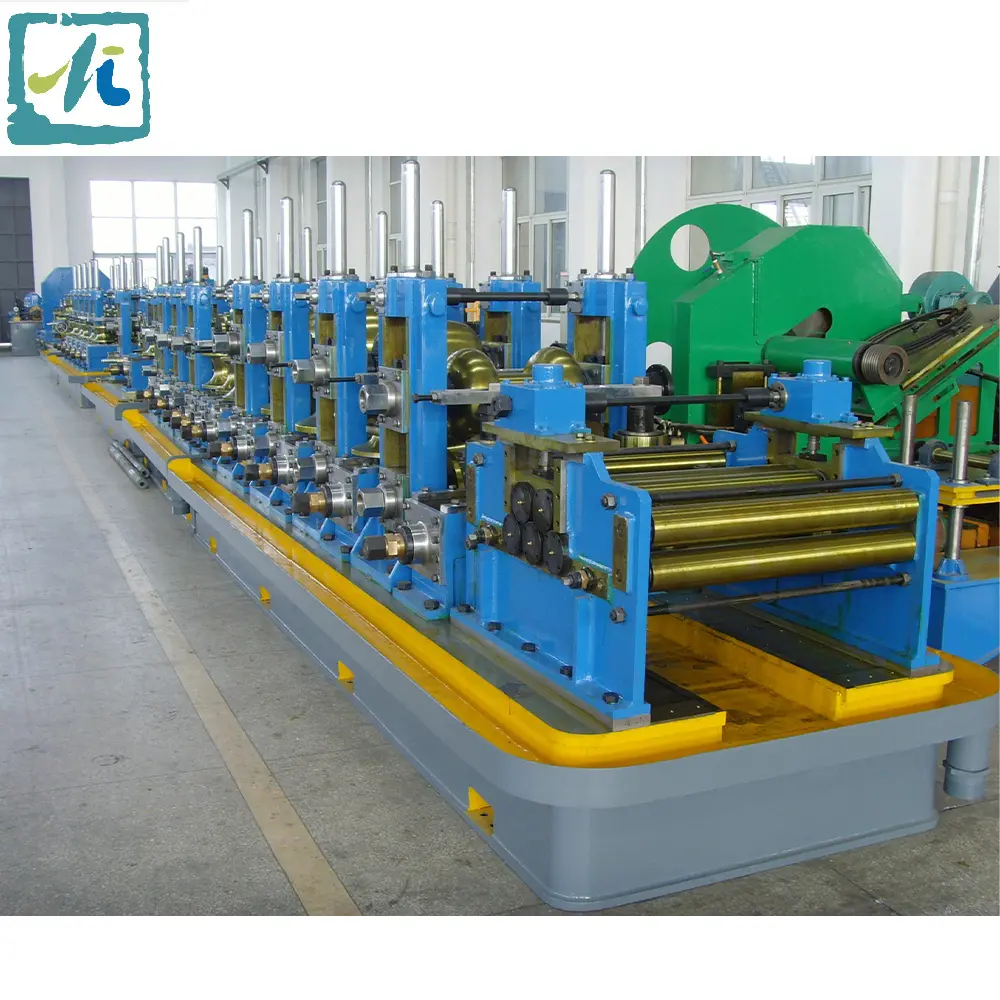

Tube Mill Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
description2
Company Introduction
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
description2
Our Certificates
description2
Our Exhibition
description2
FAQ
Q. Who are We?
A:Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.
Q. How do we guarantee quality?
A:In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.
Q. What can you buy from us?
A:Various types of pipe making machines.
Q. Why do you buy from us instead of other suppliers?
A:Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.
Q. What services can we provide?
A:Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
