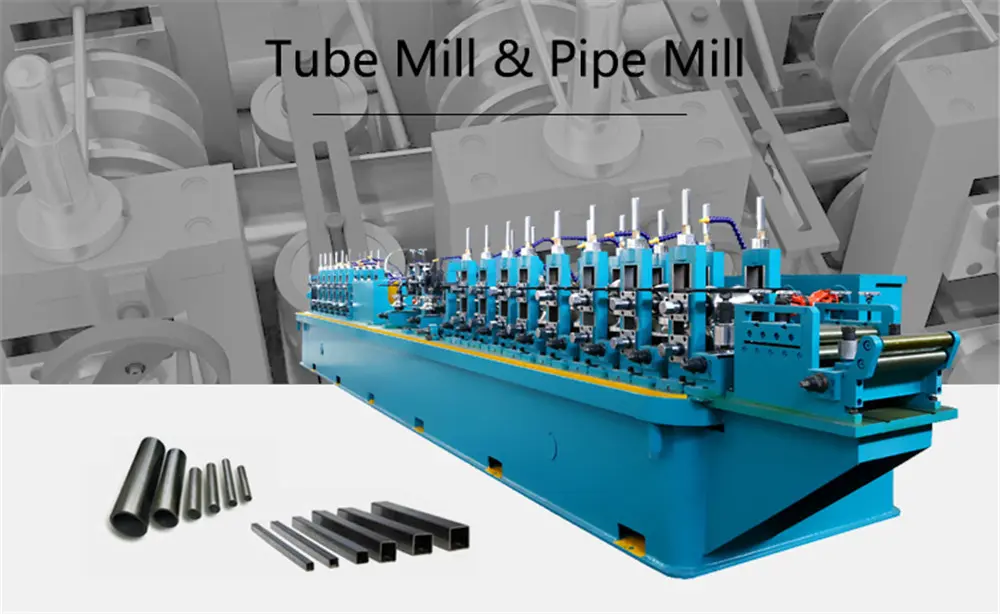

Tube Mill Machine Line
MG-32 Tube Making Machine Square Pipe Making Machine
description2
Product Details
Our pipe mill is widely used in building materials, metallurgy, mineral processing, electric power, chemical and other industries of cement and other materials grinding. The main components of the tube mill are: cylinder, feed part, discharge part, transmission part and so on. Strong adaptability to fluctuations in material physical properties (such as particle size, moisture, hardness, etc.) and large production capacity. Its crushing ratio is large (generally more than 300, ultra-fine crushing can reach more than 1000), the fineness of the product is good, and the particle grading is easy to adjust.
The pipe grinding machine has the characteristics of large crushing ratio, large production capacity, strong adaptability to materials, convenient replacement of wearing parts, etc. It can be adapted to different operations: dry operation or wet operation. The drying and grinding processes can also be carried out simultaneously. Grinding can be done in open or closed circuit. Good sealing, can be operated under negative pressure, no dust flying in the workplace.
Mivi tube mill machine adopts digital welding parameter setting, which is intuitive and accurate. Precise control of current and time in welding process to improve welding quality. Fuselage anti tilt plus coaxial direct pressure design, pressure application is balanced, and welding precision is improved. It has super power output and is suitable for welding large plastic products with good welding effect. Our Welded Steel Tube Pipe Making Machine has humanized sound insulation design, which can effectively control sound wave propagation.
description2
Machine parameter
|
Item No.
|
MG-32
|
|
Outer Diameter
|
13mm-50.8mm
|
|
Wall Thickness
|
0.6mm-2.0mm
|
|
Square tube size
|
10×10mm～40×40mm
|
|
Square tube thickness
|
0.6mm～1.5mm
|
|
Production Speed
|
30-100m/min
|
|
Pipe length
|
4M～8M
|
|
Driving Motor
|
110KW*1 set
|
|
HF Welder Power
|
150KW
|
|
Weight
|
≤2000kg
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Warranty of core components
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
description2

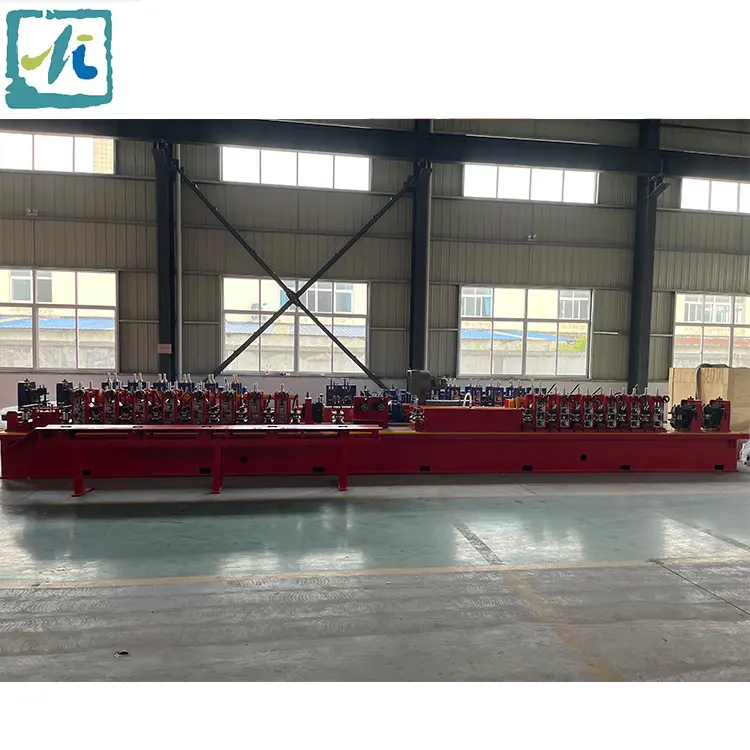

Production Line
description2

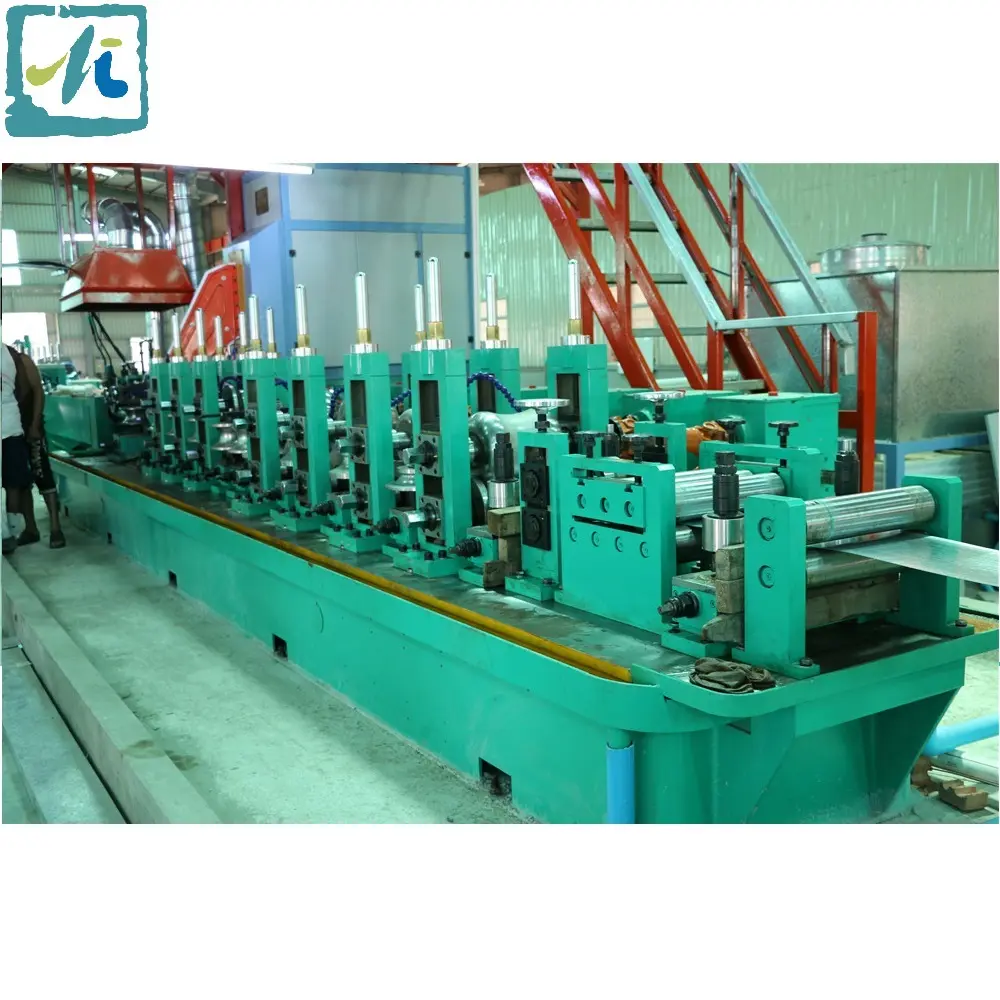

Tube Mill Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
description2
Company Introduction
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
description2
Our Certificates
description2
Our Exhibition
description2
FAQ
Q. Who are We?
A:Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.
Q. How do we guarantee quality?
A:In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.
Q. What can you buy from us?
A:Various types of pipe making machines.
Q. Why do you buy from us instead of other suppliers?
A:Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.
Q. What services can we provide?
A:Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
