MG-254 Welded Steel Pipe Making Machine
description2
Product Details
We can help you design a customized plan based on the material and specific dimensions of the pipes you produce to achieve the best cost performance without wasting your budget and costs.
If you have any questions about configuration or technology, please feel free to discuss them with us.
If you have any brand or parameter requirements for accessories, please inform us in time so that we can provide you with an accurate quotation.
For inquiries about our tube mill machines, please leave your email or whatsapp to us and we will be in touch within 24 hours.
description2
Machine Parameter
|
Item No.
|
MG-254
|
|
Outer Diameter
|
89mm-254mm
|
|
Wall Thickness
|
2.0mm-7.0mm
|
|
Square tube size
|
70×70mm～200×200mm
|
|
Square tube thickness
|
2.0mm～6.0mm
|
|
Production Speed
|
30-60m/min
|
|
Pipe length
|
4M～8M
|
|
Driving Motor
|
400KW*1 set
|
|
HF Welder Power
|
500KW
|
|
Weight
|
≤10000kg
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Warranty of core components
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
description2

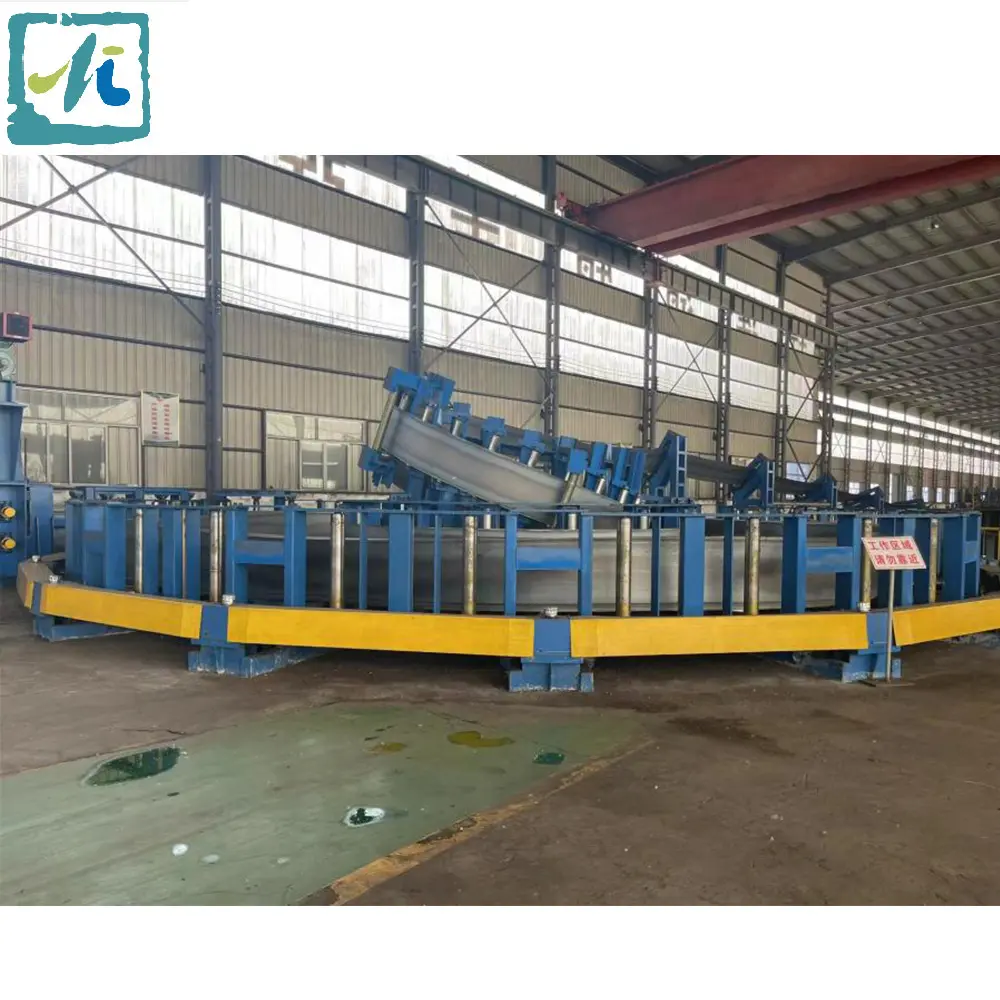

Machine Production Shows
description2
Welded Pipe Making Machine
| Model | Outer diameter | Pipe thickness | Square tube size | Square tube thickness | Produce speed |
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 10mm*10mm-20mm*20mm | 0.3mm-0.8mm | 30m-100m/min |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 10mm*10mm-25mm*25mm | 0.4mm-1.0mm | 30m-100m/min |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 10mm*10mm-45mm*45mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 10mm*10mm-40mm*40mm | 0.6mm-1.5mm | 30m-100m/min |
| MG-45 | 13mm～60mm | 0.6mm-2.5mm | 10mm*10mm～45mm*45mm | 0.6mm～2.0mm | 30m-100m/min |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 15mm*15mm-60mm*60mm | 0.6mm-2.0mm | 30m-100m/min |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 20mm*20mm-50mm*50mm | 0.8mm-3.0mm | 30m-80m/min |
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 15m-70m/min |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 50mm*50mm-130mm*130mm | 1.5mm-4.0mm | 20m-70m/min |
| MG-140 | 32mm-140mm | 0.8mm～4.0mm | 25mm*25mm-110mm*110mm | 0.8mm-3.5mm | 30m-70m/min |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 25mm*25mm-100mm*100mm | 1.0mm-4.0mm | 30m-50m/min |
| MG-172 | 89mm-172mm | 1.0mm～5.0mm | 70mm*70mm～130mm*130mm | 1.0mm-4.0mm | 30m-70m/min |
| MG-219 | 76.2mm-219.1mm | 2.0mm～8.0mm | 60mm*60mm～170mm*170mm | 2.0mm-8.0mm | 30m-45m/min |
| MG-254 | 89mm-254mm | 2.0mm～7.0mm | 70mm*70mm～200mm*200mm | 2.0mm-6.0mm | 30m-60m/min |
| For more customizations, please contact | |||||
description2
Company Introduction
At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
description2
Our Certificates
description2
Our Exhibition
description2
FAQ
Q: What products do you make?
A: Our products are mainly various types of pipe making machines. We have a lot of experience in this field.
Q: What are the advantages of your machines?
A: We have first-class suppliers. Support customization, worry-free after-sales.
Q: Can you put the company name or logo on the product?
A: Yes. We can print your logo or company name on the product by stamping or coating it
Q: How many workers do you need to operate this machine?
A: If the worker knows how to operate the machine, one worker can operate two machines at the same time.
Q: How long does it take to replace the roller on the machine?
A: If a worker changes the roller once, it takes about 3 hours, but sometimes it depends on whether the worker has it
Familiar enough to decide.
Q: How many tons does the average machine produce per month?
A: Our machines depend on the model. In this case, one machine can produce 70 tons per month.
Q: How do we get after-sales service for the machine?
A: We will provide installation, operation, maintenance and other aspects of technical support, you can also arrange technical engineers to the site
Your company.
