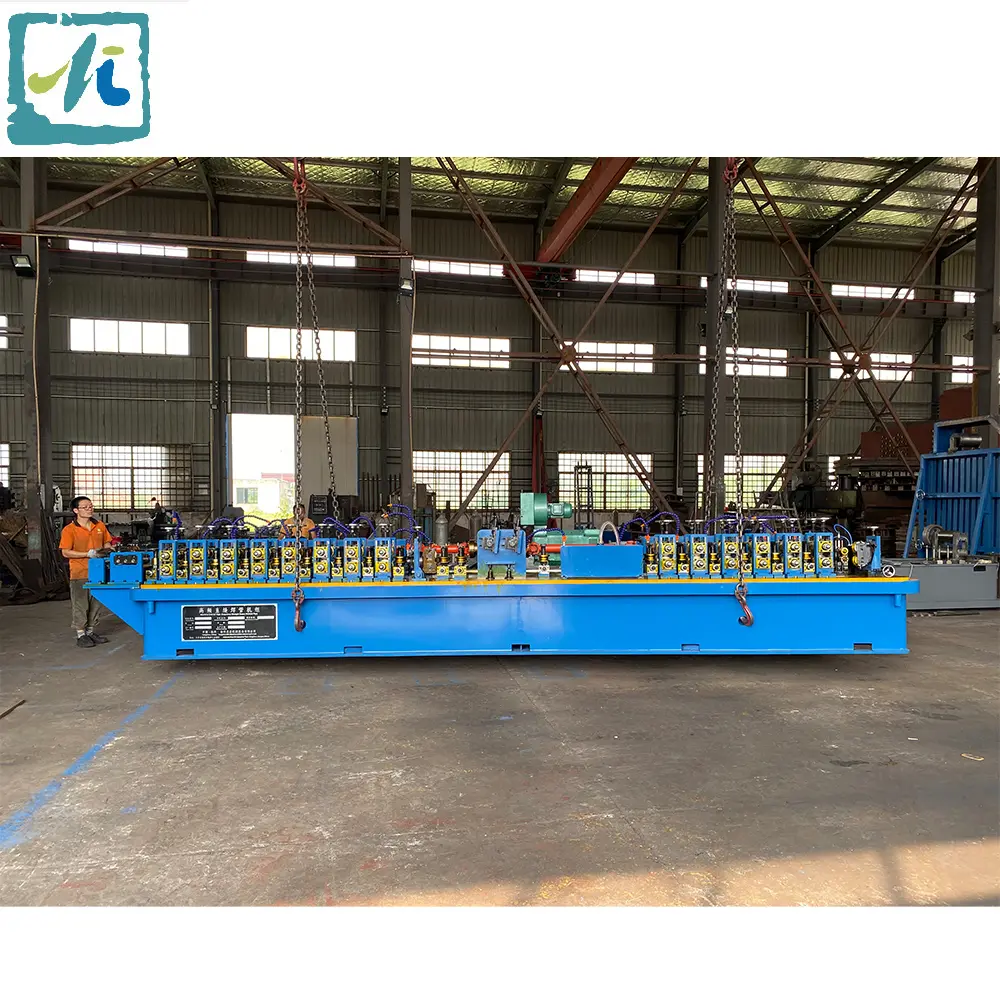

MG-25 Tube Mill Equipment GI MS Pipe Making Machine Line

Tube Mill Machine Line

MG-25 Tube Mill Equipment GI MS Pipe Making Machine Line

MG-25 Tube Mill Equipment is a mature pipe production line in our factory. Our pipe making machine production line supports the production of galvanized pipe and carbon steel pipe of various sizes. The professional pipe making machine equipment provided by our factory supports customization, worry-free after-sales.

  • Model MG-25
  • Outer Diameter 8mm-32mm
  • Wall Thickness 0.4mm-1.2mm
  • Production Speed 30-100m/min
  • Warranty 1 year
  • Color Custom


description2

Product Details

A rectangular steel pipe production machine consists of several key components that work together to produce high quality steel pipes. The process starts with the raw material, which is a flat steel strip. The strip is then fed into the machine and guided by a series of rollers. These rollers help shape the steel strip into the desired rectangle. The steel strips are then welded together using a high-frequency welding process and cut to the desired length. The finished rectangular steel pipe goes through a cooling phase before being packed and shipped.
Rectangular steel pipe production lines have several advantages over traditional manufacturing methods. This machine can produce steel tubes at a faster rate than traditional methods. In addition, the steel pipe produced by the machine has higher precision and consistency. These properties make rectangular steel pipe production lines ideal for companies that require a large number of high-quality steel pipes. In addition, the machine is user-friendly, saving time and resources.
Rectangular steel pipe production lines have been recognized and popularized in many countries. This machine has played an important role in boosting the economies of these countries, creating jobs and expanding their manufacturing capabilities. The machine's exceptional performance and functionality make it stand out in the global market as the first choice for all those who need high-quality rectangular steel pipes.
In short, the rectangular steel pipe production line is a valuable tool that has revolutionized steel pipe manufacturing around the world. The machine has the advantages of high quality, high precision, good consistency, user friendly, fast speed, etc., is the first choice of large and small enterprises. If you are looking to increase your steel pipe manufacturing capabilities and grow your business, this is a worthwhile investment. Let's make our world stronger with this technologically advanced product!

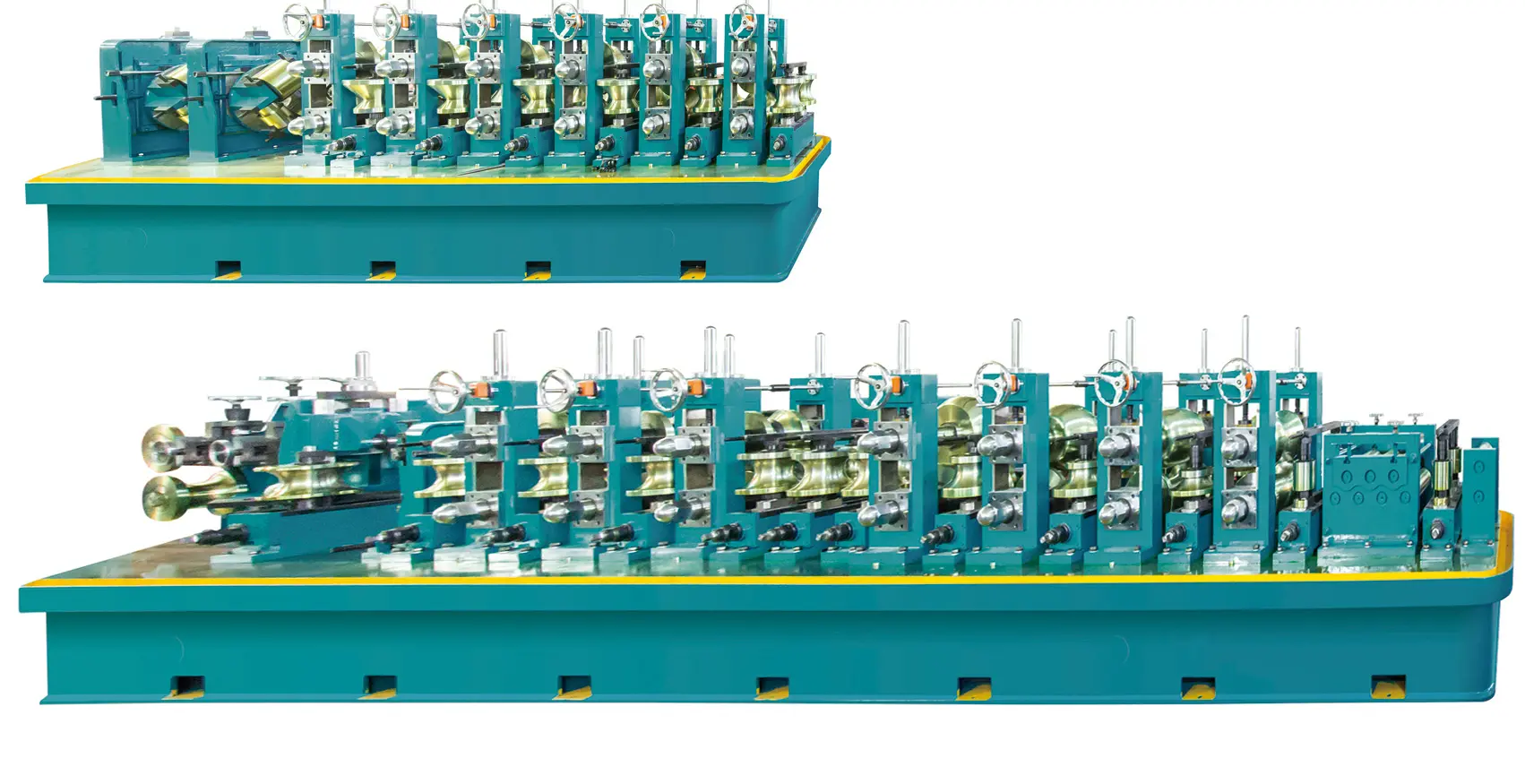

651297d3754eb71398650d46ef6451b83370

description2

Machine Parameter

Item No.
MG-25
Outer Diameter
8mm-32mm
Wall Thickness
0.4mm-1.2mm
Production Speed
30-100m/min
Driving Motor
55KW*1 set
HF Welder Power
100KW
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty of core components
1 Year
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works

description2

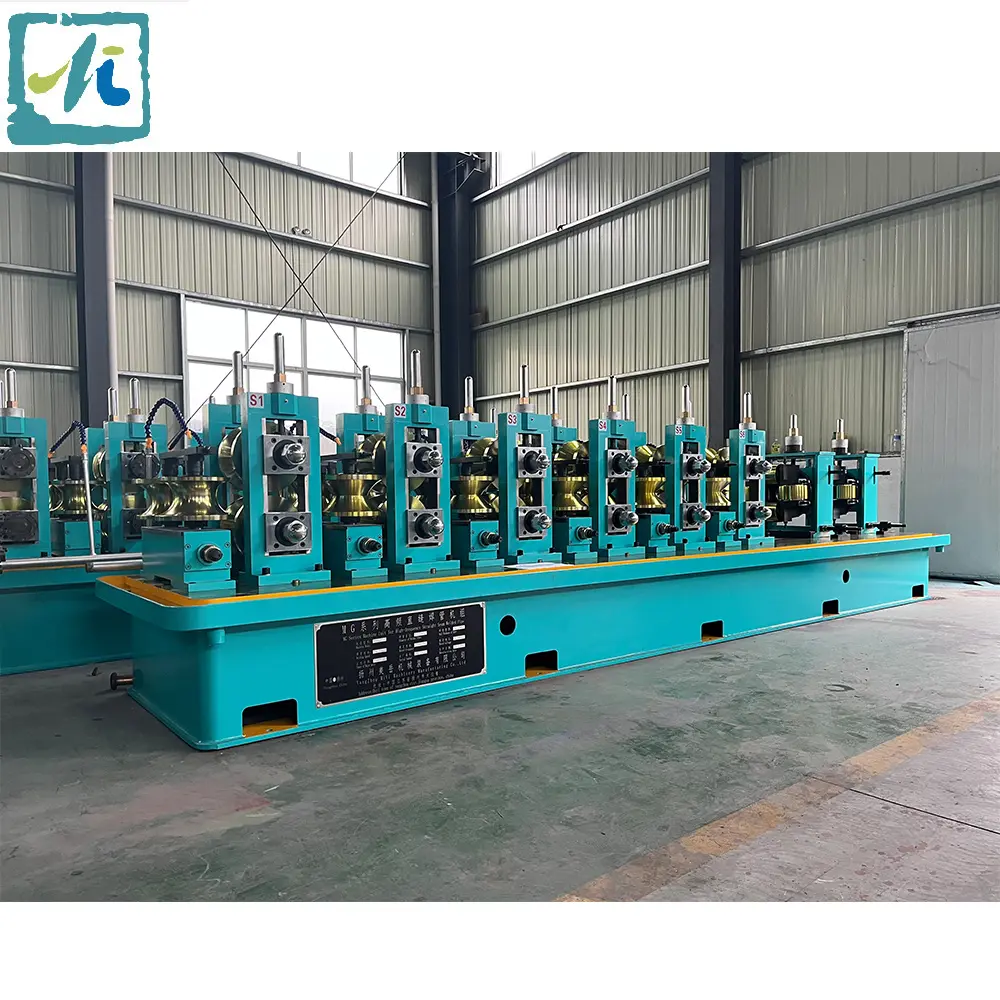

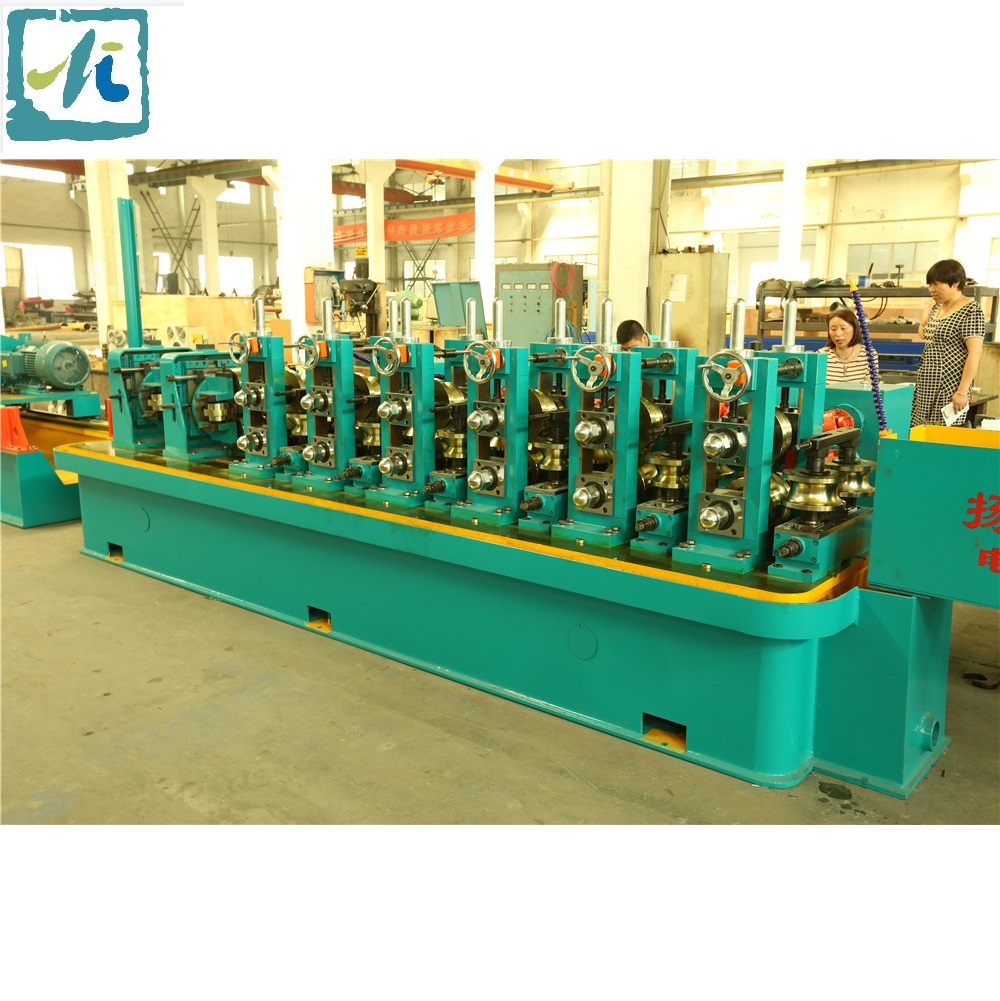

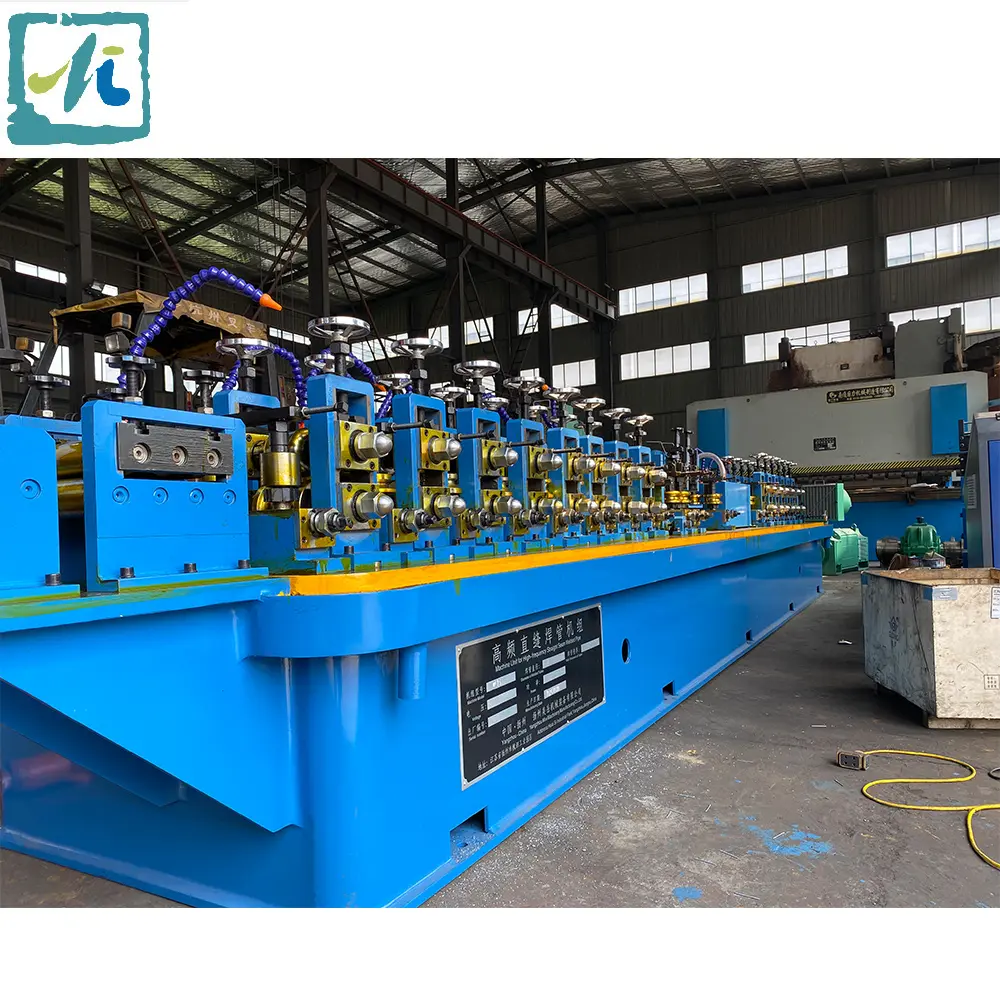

Production Line

machine production shows

description2

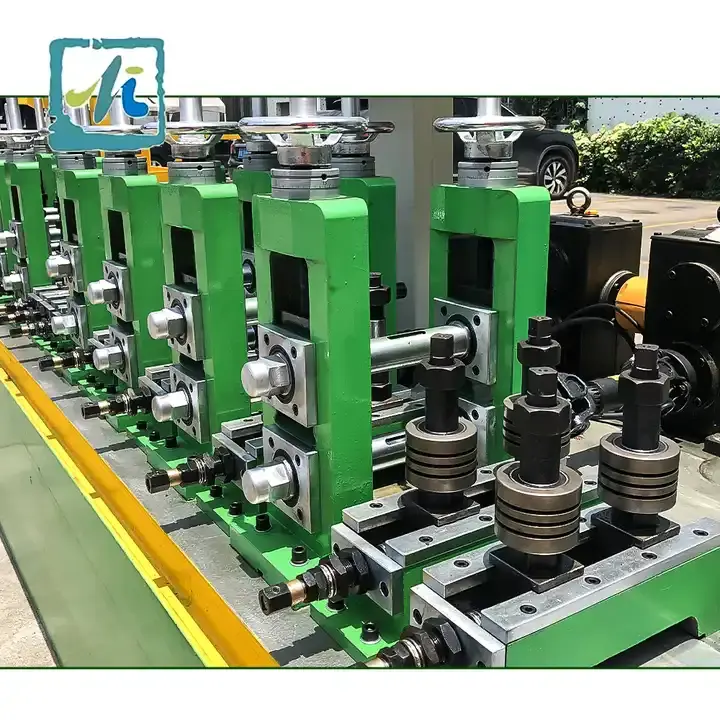

Tube Mill Making Machine

Model Outer diameter Pipe thickness Square tube size Square tube thickness Produce speed
MG-16 7mm-25mm 0.3mm-1.0mm 10mm*10mm-20mm*20mm 0.3mm-0.8mm 30m-100m/min
MG-25 8mm-32mm 0.4mm-1.2mm 10mm*10mm-25mm*25mm 0.4mm-1.0mm 30m-100m/min
MG-28 10mm-50.8mm 0.5mm-1.8mm 10mm*10mm-45mm*45mm 0.6mm-1.5mm 30m-100m/min
MG-32 13mm-50.8mm 0.6mm-2.0mm 10mm*10mm-40mm*40mm 0.6mm-1.5mm 30m-100m/min
MG-45 13mm~60mm 0.6mm-2.5mm 10mm*10mm~45mm*45mm 0.6mm~2.0mm 30m-100m/min
MG-50 19mm-76mm 0.7mm-2.75mm 15mm*15mm-60mm*60mm 0.6mm-2.0mm 30m-100m/min
MG-60 25mm-80mm 1.0mm-3.25mm 20mm*20mm-50mm*50mm 0.8mm-3.0mm 30m-80m/min
MG-76 30mm-90mm 1.0mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 15m-70m/min
MG-127 32mm-127mm 1.5mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 20m-70m/min
MG-140 32mm-140mm 0.8mm~4.0mm 25mm*25mm-110mm*110mm 0.8mm-3.5mm 30m-70m/min
MG-165 50mm-165mm 2.0mm-5.0mm 25mm*25mm-100mm*100mm 1.0mm-4.0mm 30m-50m/min
MG-172 89mm-172mm 1.0mm~5.0mm 70mm*70mm~130mm*130mm 1.0mm-4.0mm 30m-70m/min
MG-219 76.2mm-219.1mm 2.0mm~8.0mm 60mm*60mm~170mm*170mm 2.0mm-8.0mm 30m-45m/min
MG-254 89mm-254mm 2.0mm~7.0mm 70mm*70mm~200mm*200mm 2.0mm-6.0mm 30m-60m/min
For more customizations, please contact

description2

Company Introduction

At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.

Our Factory

description2

Our Certificates

certificate

description2

Our Exhibition

Our Exhibition

description2

FAQ

Q. Who are We?
A:Yangzhou Mivi Machinery Co., LTD., headquartered in Jiangsu Province, China.

Q. How do we guarantee quality?
A:In order to ensure the machining accuracy of the machine and ensure the stability of the machine operation, the accessory ERW tube mill is installed and produced independently. We have a variety of machining equipment, such as horizontal machining center, vertical machining center, CNC lathe, jig boring machine. There is always a final inspection before shipment.

Q. What can you buy from us?
A:Various types of pipe making machines.

Q. Why do you buy from us instead of other suppliers?
A:Professional service team, to provide you with one-stop service: engineering construction - production service - after-sales service - sales service;
R&d technical team customized services according to customer needs;
High quality, competitive price.

Q. What services can we provide?
A:Daily pre-sales consultancy and on-site service
1. Reply time: within 10 minutes (not 24 hours)
2. Provide product information about tube rolling mill
3. Give you good technical advice
After-sales service - 24 hours a day, 7 days a week
1. Test the pipe making machine before shipment
2. Provide installation services according to customer needs;
3. OTO Training Service: Instructing customers on how to use the machine
4 auxiliary services :① Improve the quality of pipes; ② Improve production capacity; ③ Reduce production costs
