High Frequency Welding Pipe Making Machine Unit

Products

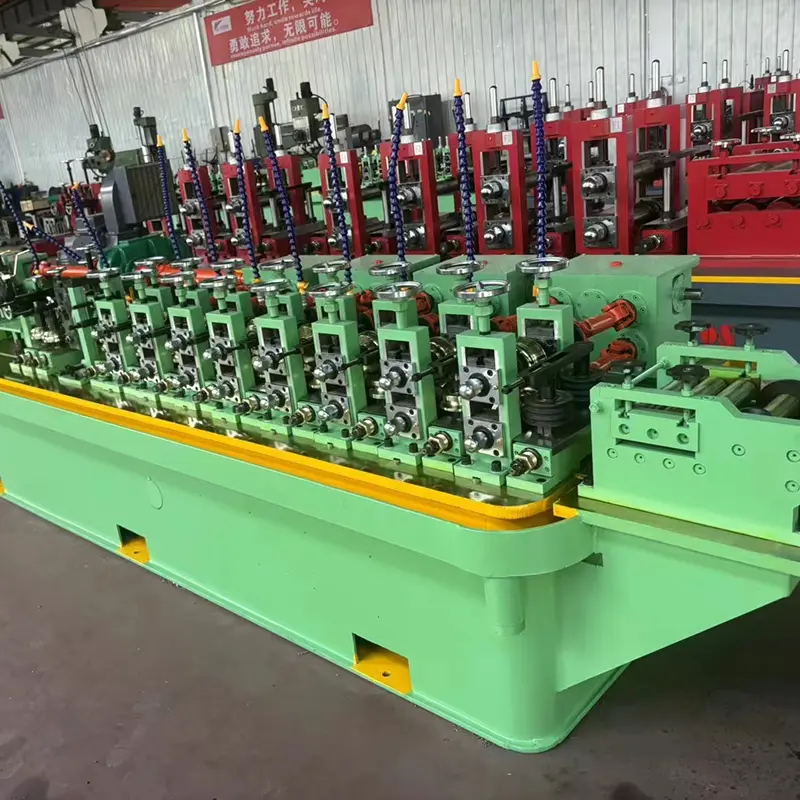

High Frequency Welding Pipe Making Machine Unit

High frequency welded pipe unit is designed for efficient production of welded pipe. Advanced high-frequency technology is used to ensure that the welding is firm and accurate, and high-speed operation is achieved. The unit is ideal for manufacturing pipes of various sizes and materials, which can improve productivity and quality for industrial applications.

  • Outer Diameter 7mm-254mm
  • Wall Thickness 0.3mm-7.0mm
  • Production Speed 30-120m/min
  • Warranty 1 year
  • Color Custom


description2

Product Details

The introduction of high-frequency pipe welding units, an advanced solution designed to revolutionize welded pipe production. This advanced pipe making machine uses cutting-edge high-frequency technology to provide excellent welding performance, ensuring that each weld is both strong and precise. The equipment's ability to operate at high speeds significantly increases productivity, making it an indispensable asset for manufacturers of a wide range of industrial applications.
High frequency pipe welding units are designed to accommodate a variety of pipe sizes and materials, providing unmatched versatility in the manufacturing process. Whether you are producing small diameter pipes or larger industrial grade pipes, this machine can meet your specific production needs. The innovative design not only simplifies the welding process, but also improves the overall quality of the finished product, ensuring that it meets the stringent standards required in today's competitive market.
Investing in high frequency pipe welders means investing in efficiency and reliability. By harnessing the power of advanced welding technology, manufacturers can achieve higher yield rates while maintaining product integrity. The machine is not just a tool; It is a comprehensive solution that enables businesses to optimize operations and increase production capacity. Experience the future of pipe manufacturing with a high-frequency pipe welder, where quality meets innovation.

Hot Rolling Mill (1)Hot Rolling Mill (1)

description2

Material Information

1

Applicable material

Hot rolled strip steel, galvanized strip steel

2

Material grade

Low carbon steel/low alloy steel≤350Mpa

3

Inner diameter of strip steel

Φ508mm

4

Outer diameter of strip steel

≤Φ2200mm

5

Weight of coil

35tons

description2

Finished Product Information

1 Outer diameter of pipe Φ219 ~Φ406mm
2 Thickness range of pipe 4 .0~ 12 .7mm
3 Length of pipe 4m--12m
4 Speed of production line 40m/ min

description2

Custom Rollers

machine production shows

description2

Tube Mill Making Machine

Model Outer diameter Pipe thickness Square tube size Square tube thickness Produce speed
MG-16 7mm-25mm 0.3mm-1.0mm 10mm*10mm-20mm*20mm 0.3mm-0.8mm 30m-100m/min
MG-25 8mm-32mm 0.4mm-1.2mm 10mm*10mm-25mm*25mm 0.4mm-1.0mm 30m-100m/min
MG-28 10mm-50.8mm 0.5mm-1.8mm 10mm*10mm-45mm*45mm 0.6mm-1.5mm 30m-100m/min
MG-32 13mm-50.8mm 0.6mm-2.0mm 10mm*10mm-40mm*40mm 0.6mm-1.5mm 30m-100m/min
MG-45 13mm~60mm 0.6mm-2.5mm 10mm*10mm~45mm*45mm 0.6mm~2.0mm 30m-100m/min
MG-50 19mm-76mm 0.7mm-2.75mm 15mm*15mm-60mm*60mm 0.6mm-2.0mm 30m-100m/min
MG-60 25mm-80mm 1.0mm-3.25mm 20mm*20mm-50mm*50mm 0.8mm-3.0mm 30m-80m/min
MG-76 30mm-90mm 1.0mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 15m-70m/min
MG-127 32mm-127mm 1.5mm-4.0mm 50mm*50mm-130mm*130mm 1.5mm-4.0mm 20m-70m/min
MG-140 32mm-140mm 0.8mm~4.0mm 25mm*25mm-110mm*110mm 0.8mm-3.5mm 30m-70m/min
MG-165 50mm-165mm 2.0mm-5.0mm 25mm*25mm-100mm*100mm 1.0mm-4.0mm 30m-50m/min
MG-172 89mm-172mm 1.0mm~5.0mm 70mm*70mm~130mm*130mm 1.0mm-4.0mm 30m-70m/min
MG-219 76.2mm-219.1mm 2.0mm~8.0mm 60mm*60mm~170mm*170mm 2.0mm-8.0mm 30m-45m/min
MG-254 89mm-254mm 2.0mm~7.0mm 70mm*70mm~200mm*200mm 2.0mm-6.0mm 30m-60m/min
For more customizations, please contact

description2

Company Introduction

At Mivi Machinery Company, we specialize in the manufacture of carbon steel pipe making machines. Our machines are designed to meet the unique needs of our clients, offering custom solutions to fit their specific requirements.
