Tube Mill Machine Line
0102030405
High Frequency Welded Carbon Steel Tube Mill
Introduce our advanced high frequency welded carbon steel pipe unit, a cutting edge machine designed to revolutionize the production of carbon steel pipes. The specialized equipment has been carefully designed with high frequency welding technology to ensure the production of high quality, precision and durable pipes that meet the stringent requirements of various industrial applications. With its advanced components and controls, the machine is expected to improve the efficiency and stability of pipe production and set new standards in the industry.
High-frequency welded carbon steel pipe units represent the pinnacle of innovation in pipe manufacturing. By harnessing the power of high-frequency welding technology, the machine is able to produce pipes with excellent precision and strength that meet the stringent requirements of industrial use. Its cutting-edge design and construction ensure that manufactured pipes are of the highest quality, providing unmatched durability and reliability in a wide range of applications.
Our high frequency welded carbon steel pipe units are equipped with advanced components and controls designed to provide optimal performance and efficiency. The integration of advanced technologies enables seamless operation and precise control of the manufacturing process, resulting in consistently high quality piping. This level of automation and control not only increases productivity, but also ensures the stability and reliability of the pipes produced, meeting the strict standards of industrial applications.
In summary, our high frequency welded carbon steel pipe units represent a significant advance in pipe manufacturing technology. Capable of producing high-quality, precise and durable pipes for a variety of industrial applications, the machine will redefine the standard for pipe production. It is equipped with advanced components and controls that offer unmatched efficiency and stability, making it ideal for businesses looking to increase their pipeline manufacturing capabilities.

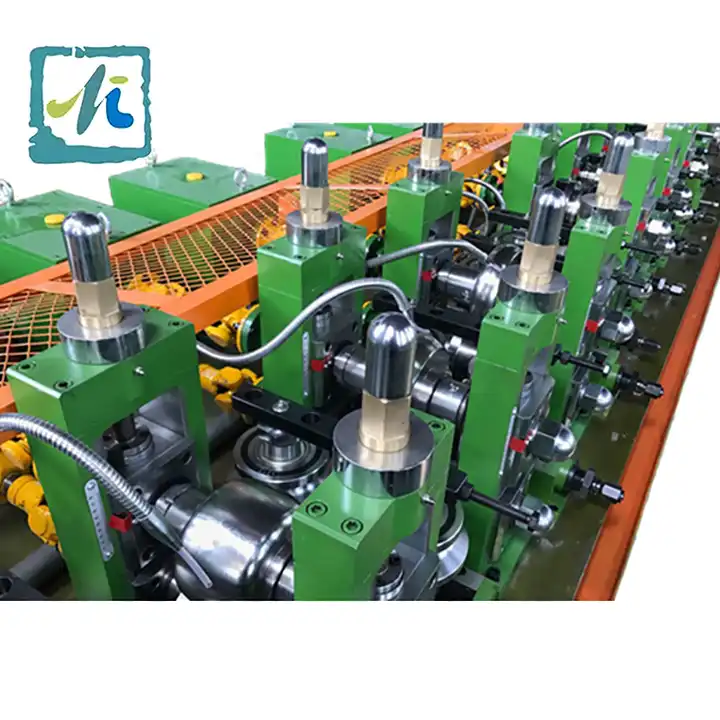

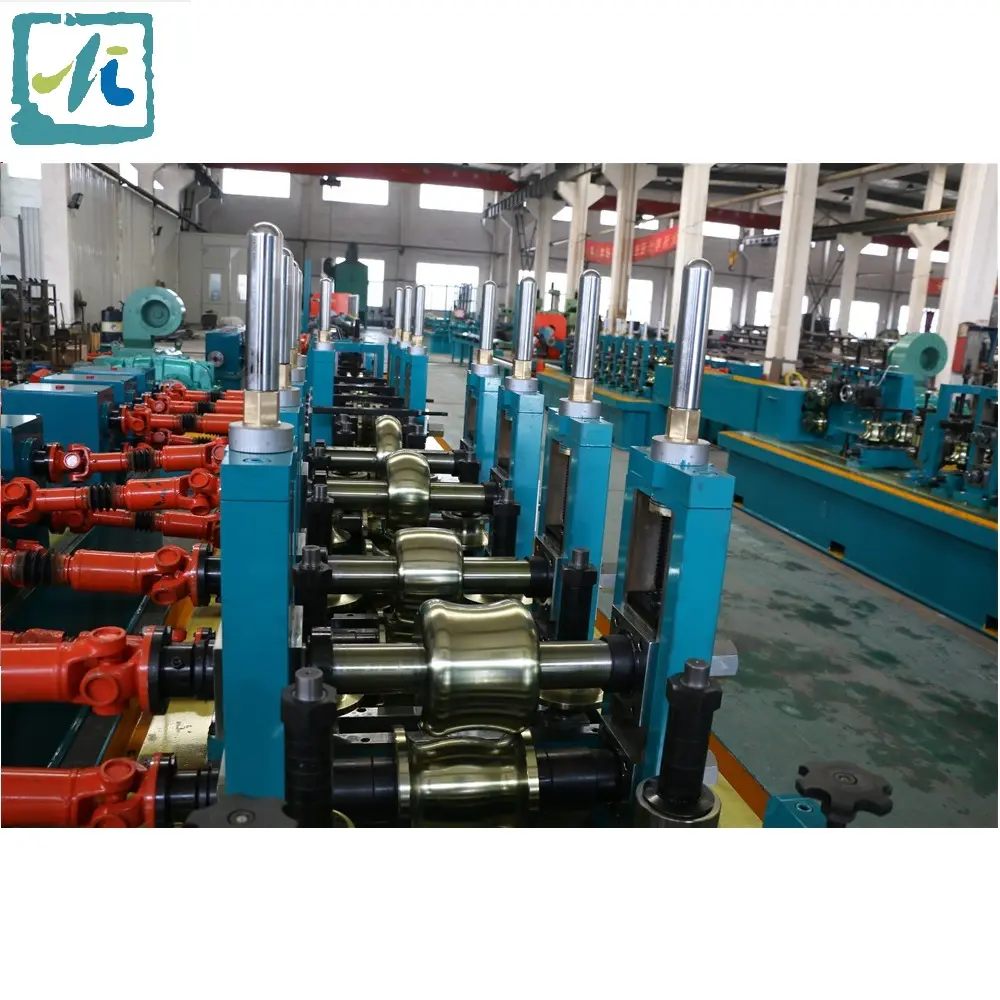

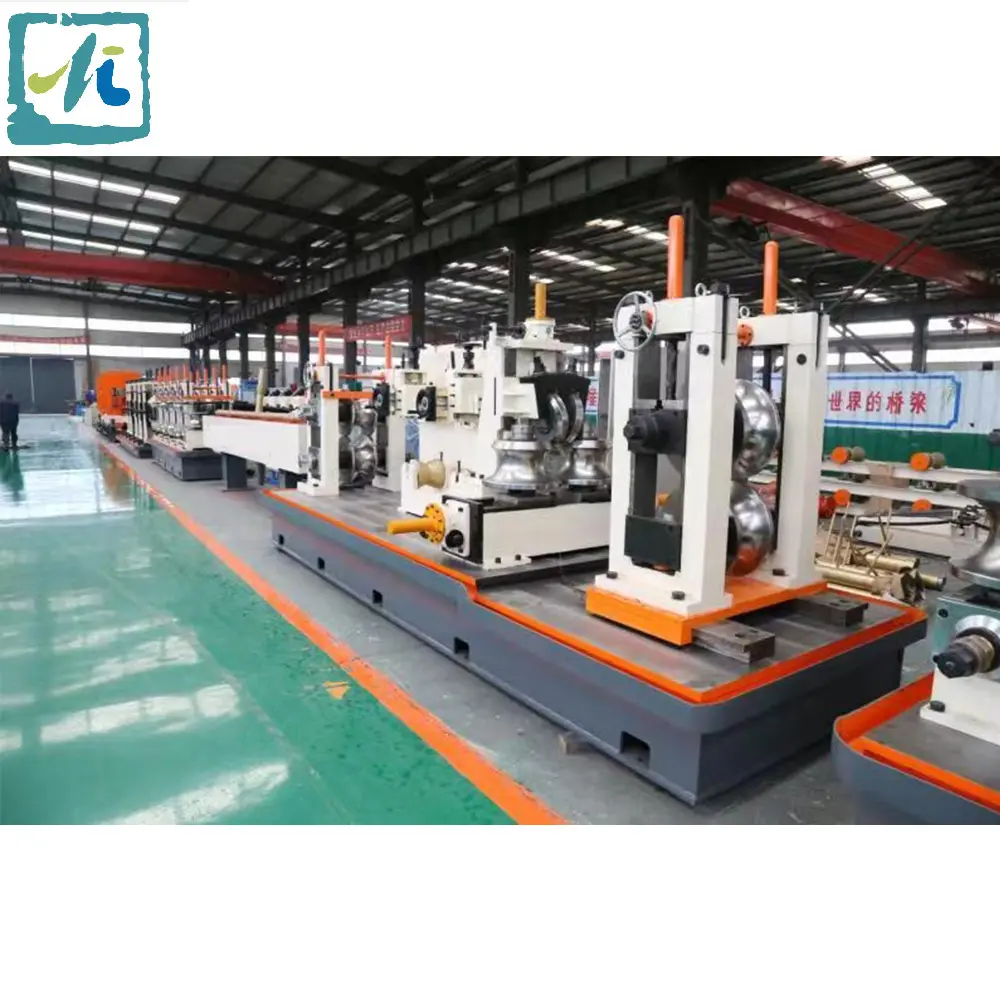

Machine Production Shows
Our Product
MIVI High-frequency Welding Pipe Making Machine Line
Item No. |
Outer diameter |
Wall thickness |
Production speed |
Driving motor |
HF welder power |
|---|---|---|---|---|---|
| MG-16 | 7mm-25mm | 0.3mm-1.0mm | 30-100m/min | 22kw*1set | 60kw |
| MG-25 | 8mm-32mm | 0.4mm-1.2mm | 30-100m/min | 45kw*1set | 60kw |
| MG-28 | 10mm-50.8mm | 0.5mm-1.8mm | 30-100m/min | 75kw*1set | 100kw |
Item No. |
Outer diameter |
Wall thickness |
Production speed |
Driving motor |
HF welder power |
|---|---|---|---|---|---|
| MG-32 | 13mm-50.8mm | 0.6mm-2.0mm | 30-100m/min | 90kw*1set | 100kw |
| MG-50 | 19mm-76mm | 0.7mm-2.75mm | 30-100m/min | 90kw*2set | 200kw |
| MG-60 | 25mm-80mm | 1.0mm-3.25mm | 30-80m/min | 90kw*2set | 200kw |
Item No. |
Outer diameter |
Wall thickness |
Production speed |
Driving motor |
HF welder power |
|---|---|---|---|---|---|
| MG-76 | 30mm-90mm | 1.0mm-4.0mm | 15-70m/min | 132kw*2set | 300kw |
| MG-127 | 32mm-127mm | 1.5mm-4.0mm | 20-70m/min | 160kw+200kw | 400kw |
| MG-165 | 50mm-165mm | 2.0mm-5.0mm | 30-50m/min | 200kw*2set | 500kw |
Item No. |
Outer diameter |
Wall thickness |
Production speed |
Driving motor |
HF welder power |
|---|---|---|---|---|---|
| MG-45 | 13mm-63.8mm | 0.6mm-2.0mm | 30-120m/min | 160kw*1set | 200kw |
| MG-140 | 32mm-140mm | 0.8mm-4.0mm | 30-70m/min | 320kw*1set | 300kw |
| MG-219 | 76mm-219mm | 2.0mm-8.0mm | 30-45m/min | 280kw*1set | 280kw |
Item No. |
Outer diameter |
Wall thickness |
Production speed |
Driving motor |
HF welder power |
|---|---|---|---|---|---|
| MG-254 | 89mm-254mm | 2.0mm-7.0mm | 30-60m/min | 400kw*1set | 500kw |
Our Advantages
1 Own CNC process center it can control quality of machine by ourself. Reduce invested cost for your project.
2 Rich experience engineer team and service team, with on line technology guidance and one to one service .
3 Supporting ONE STOP service, meet all requirement what you want ,Factory drawing can customized .

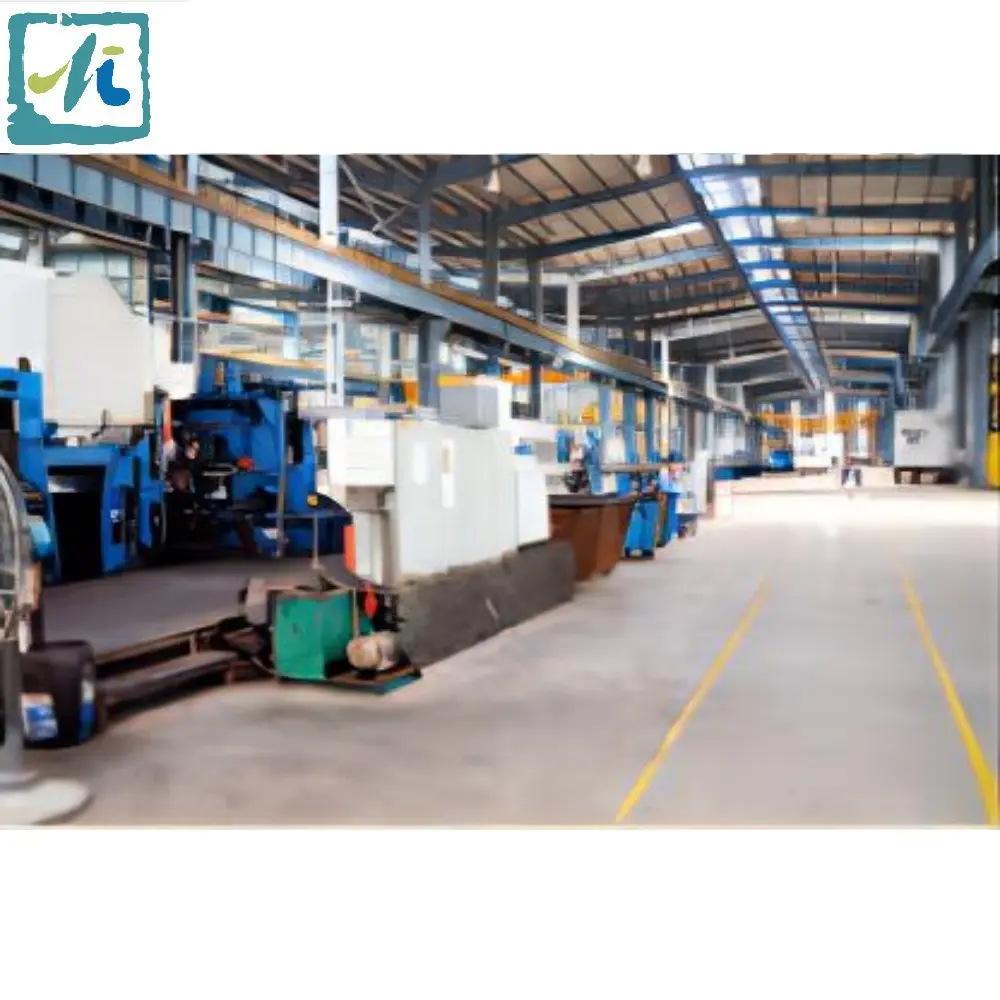

Our Factory
Yangzhou Mivi Machinery Manufacturing Co., Ltd. is a professional tube mill line manufacturer with over 20 years exporting experience.
Our main products: tube mill machines, cold rolling mills and relevant mechanical accessories.
We have exported to more than 20 countries and customzation service is avaliable for different requirements.
Now our factory have ISO9001, ISO14001certifications.
Welcome to inquiry us for more details. We will try our best to do win-win cooperation business.
Our Certificates
Our Exhibition
FAQ：
Q: What products do you make?
A: Our products are mainly various types of pipe making machines. We have a lot of experience in this field.
Q: What are the advantages of your machines?
A: We have first-class suppliers. Support customization, worry-free after-sales.
Q: Can you put the company name or logo on the product?
A: Yes. We can print your logo or company name on the product by stamping or coating it
Q: How many workers do you need to operate this machine?
A: If the worker knows how to operate the machine, one worker can operate two machines at the same time.
Q: How long does it take to replace the roller on the machine?
A: If a worker changes the roller once, it takes about 3 hours, but sometimes it depends on whether the worker has it
Familiar enough to decide.
Q: How many tons does the average machine produce per month?
A: Our machines depend on the model. In this case, one machine can produce 70 tons per month.
Q: How do we get after-sales service for the machine?
A: We will provide installation, operation, maintenance and other aspects of technical support, you can also arrange technical engineers to the site
Your company.
