Custom Welded Steel Tube Mill Pipe Making Machine

It adopts digital welding parameter setting, which is intuitive and accurate.   Precise control of current and time in welding process to improve welding quality.   Fuselage anti tilt plus coaxial direct pressure design, pressure application is balanced, and welding precision is improved.   It has super power output and is suitable for welding large plastic products with good welding effect.   Our Welded Steel Tube Pipe Making Machine has humanized sound insulation design, which can effectively control sound wave propagation.

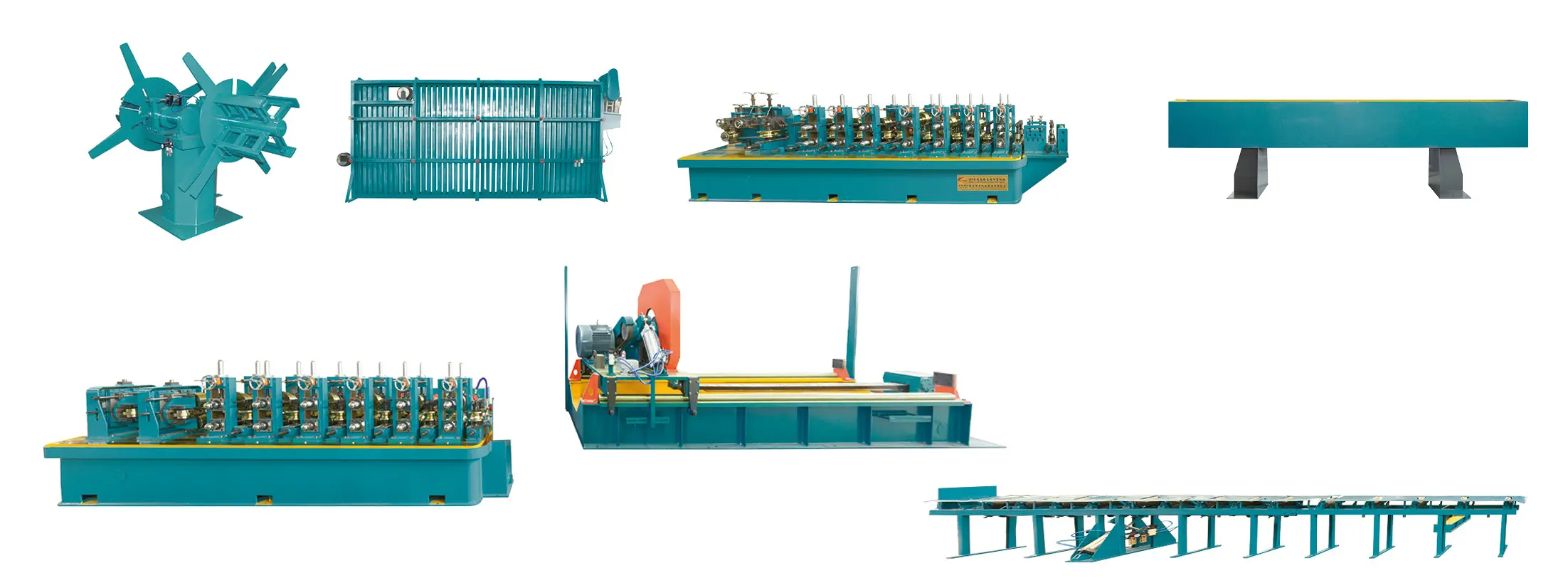

1.   Uncoiler: This equipment is located at the front end of the unit.   When in use, the coil is put on the coil head, the coil head is tensioned, and the strip steel is passively dragged into the equipment for production.   The picture below shows manual bilateral tensioning, and hydraulic tensioning and pneumatic tensioning are also available

Coil weight: ≤2500kg

2.   Storage box: spiral looper.   This equipment stores a certain amount of strip steel for continuous high-speed continuous production when the equipment is connected to the strip steel.   The looper of this machine is 4.5 meters in diameter and the filling speed is 180m/min.

Motor: YCT 18.5KW /15KW 1460 rpm

3.   Shearing butt welding machine: linking two different steel strips by welding

4.   + Forming section of the main machine: seven-roll leveling + seven flat rolls + nine vertical rolls + seven gear boxes

Main machine sizing section: six flat rollers + six vertical rollers + six gear boxes

5.   Computer flying saw: this part is used to cut the formed steel pipe to length, drag motor 18.5KW, sawing motor 22KW
