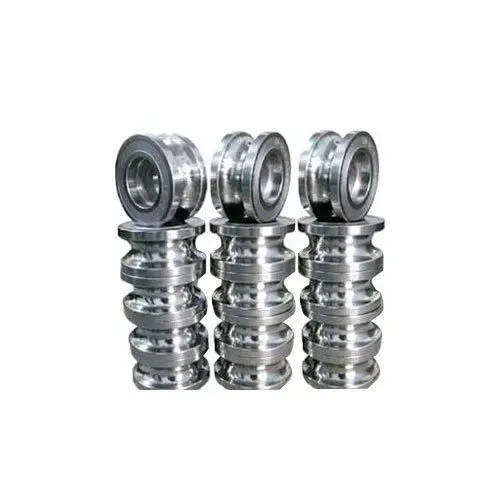

Custom Tube Mill Accessories Roller

Customer should buy the roller additional， different size of pipe need different size of roller.
In addition to supplying different specifications of tube mills, we also supply various related parts. Our tube mil is made of high-quality metal materials, the surface is smooth and flat, and has a certain metallic luster. It is manufactured through excellent processing technology, with high dimensional accuracy and clear lines, which can perfectly fit with the original machine.

Dimension Custom
Material Cr12 or Cr12Mov

product details

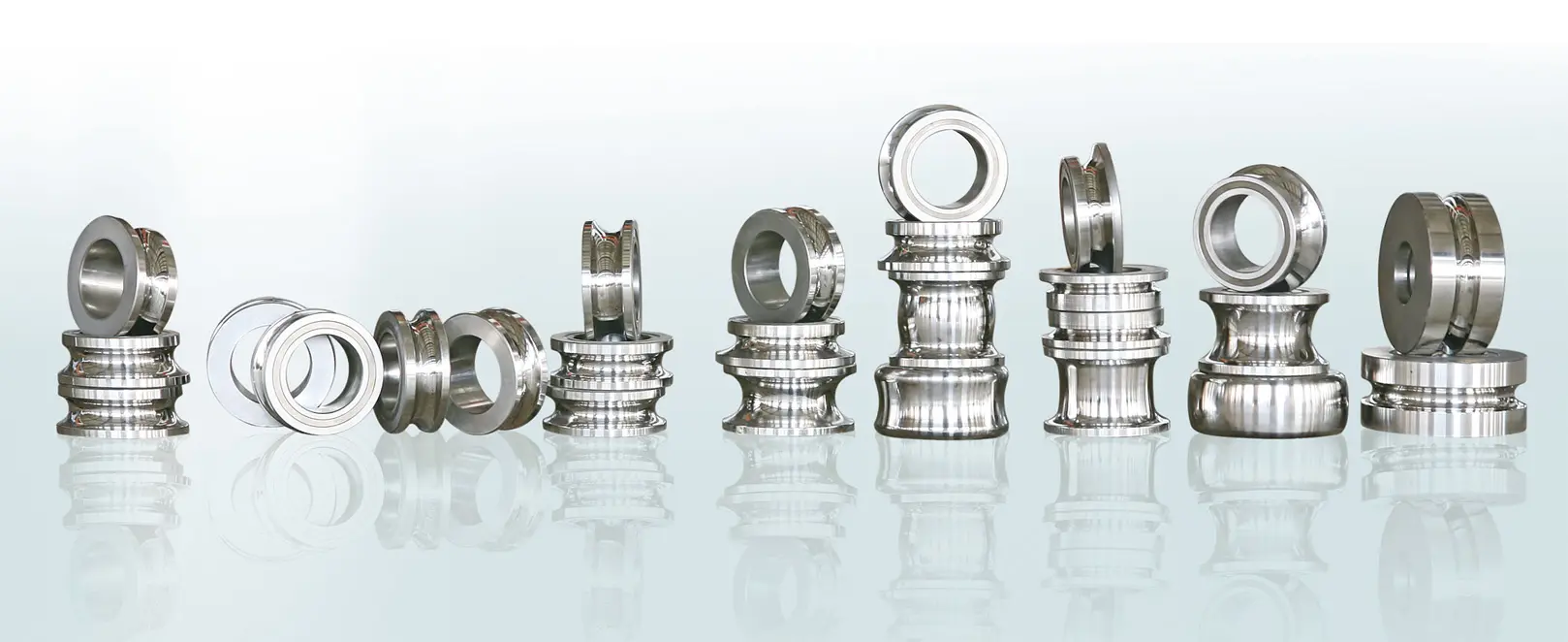

Roller Details

We are able to manufacture various shapes of tube mill , such as square tubes, round tubes, special-shaped tubes, etc., which can meet the needs of most customers. We also accept customized services, customers in need are welcome to contact us at any time to inform the details.

MIVI can provide all kinds of rollers that are available for making all specifications of round pipes and square& rectangular welded pipes.

The design of MIVI rollers adopts groove CAD technology, which is a more reasonable distribution of deformation extent for each stand and reduces wearing consumption effectively.

MIVI rollers are produced by the most advanced roller-producing machine. The material of rollers is SKD11, and the hardness is HRC59－ 62, thus making the rollers have perfect quality, better wear resistance performance, longer service life, more stable performance, and less treatment deformation.

With professional tooling technology and high-level stable quality, MIVI can design and produce the best rollers for the tube mill lines to improve your production quality and output.

description2

Custom Rollers

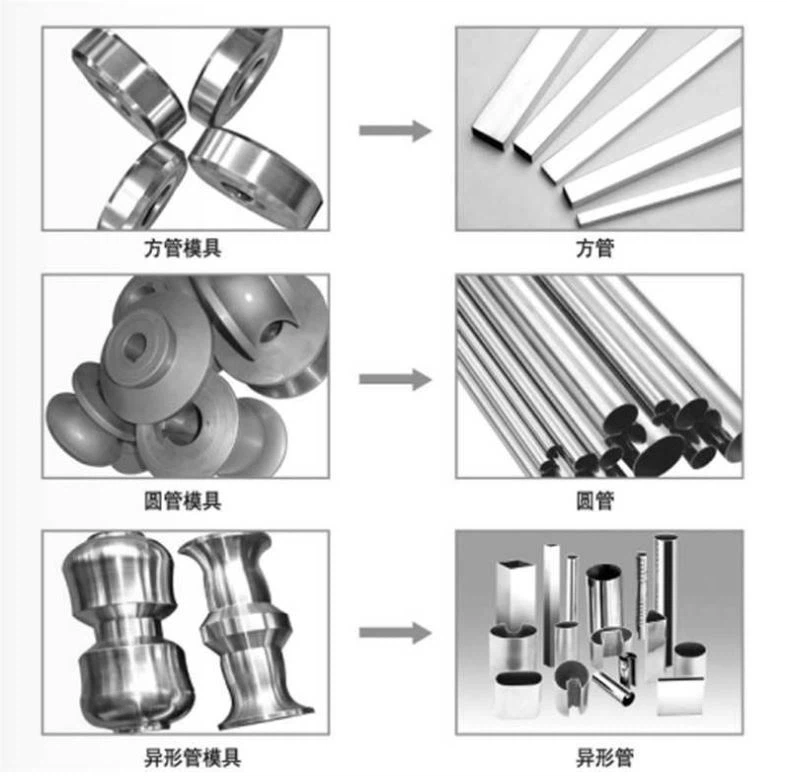

tube-mill-components

Mivi Machinery manufacturers offer the following customizations:

Pipe material: low carbon steel, galvanized steel, carbon steel, black strip steel, high strength steel；

Tube type: round tube, square tube, triangular tube, conical tube, shaped tube；

description2

Welded Pipe Making Machine

Model	Outer diameter	Pipe thickness	Square tube size	Square tube thickness	Produce speed
MG-16	7mm-25mm	0.3mm-1.0mm	10mm10mm-20mm20mm	0.3mm-0.8mm	30m-100m/min
MG-25	8mm-32mm	0.4mm-1.2mm	10mm10mm-25mm25mm	0.4mm-1.0mm	30m-100m/min
MG-28	10mm-50.8mm	0.5mm-1.8mm	10mm10mm-45mm45mm	0.6mm-1.5mm	30m-100m/min
MG-32	13mm-50.8mm	0.6mm-2.0mm	10mm10mm-40mm40mm	0.6mm-1.5mm	30m-100m/min
MG-45	13mm～60mm	0.6mm-2.5mm	10mm10mm～45mm45mm	0.6mm～2.0mm	30m-100m/min
MG-50	19mm-76mm	0.7mm-2.75mm	15mm15mm-60mm60mm	0.6mm-2.0mm	30m-100m/min
MG-60	25mm-80mm	1.0mm-3.25mm	20mm20mm-50mm50mm	0.8mm-3.0mm	30m-80m/min
MG-76	30mm-90mm	1.0mm-4.0mm	50mm50mm-130mm130mm	1.5mm-4.0mm	15m-70m/min
MG-127	32mm-127mm	1.5mm-4.0mm	50mm50mm-130mm130mm	1.5mm-4.0mm	20m-70m/min
MG-140	32mm-140mm	0.8mm～4.0mm	25mm25mm-110mm110mm	0.8mm-3.5mm	30m-70m/min
MG-165	50mm-165mm	2.0mm-5.0mm	25mm25mm-100mm100mm	1.0mm-4.0mm	30m-50m/min
MG-172	89mm-172mm	1.0mm～5.0mm	70mm70mm～130mm130mm	1.0mm-4.0mm	30m-70m/min
MG-219	76.2mm-219.1mm	2.0mm～8.0mm	60mm60mm～170mm170mm	2.0mm-8.0mm	30m-45m/min
MG-254	89mm-254mm	2.0mm～7.0mm	70mm70mm～200mm200mm	2.0mm-6.0mm	30m-60m/min
For more customizations, please contact
